BESS.IKLI-EGV
BESS.IKLI-EGV offers proven EGV deflagration venting performance with insulation placed on the outside of the panel, on the exterior of the BESS. Insulation properties can be customised to suit any BESS design.
vent panel with
exterior insulation
Application

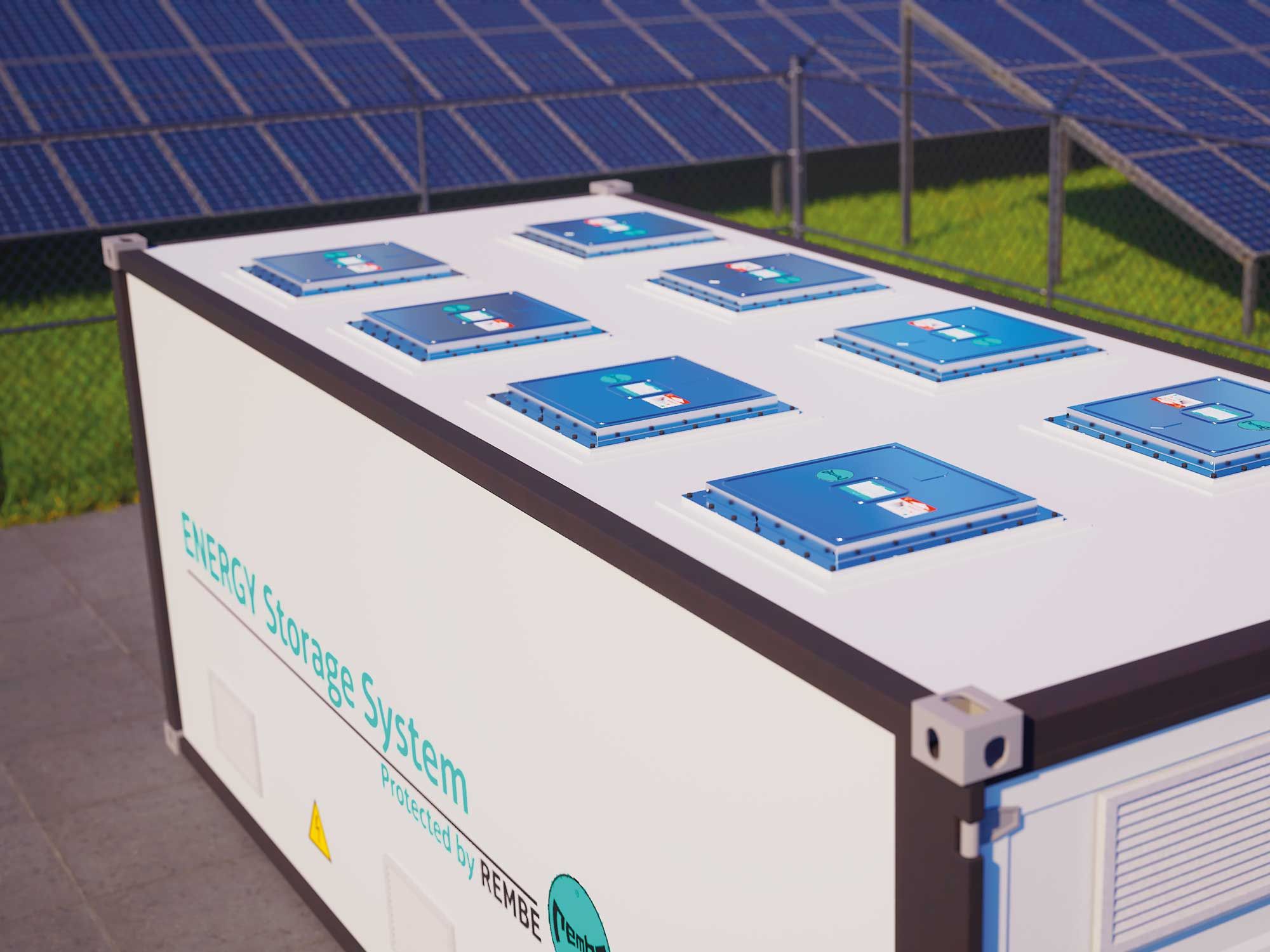

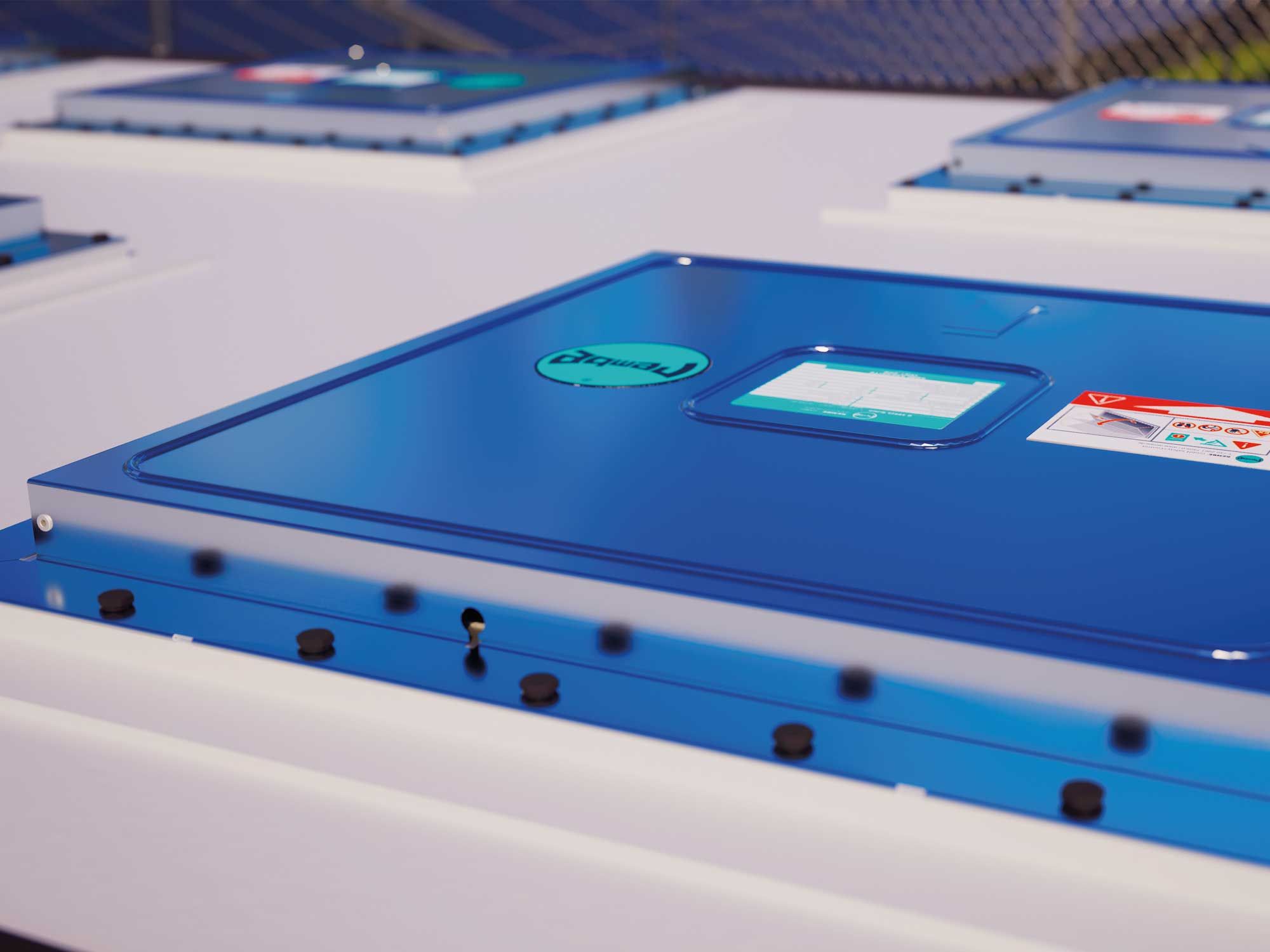

BESS.IKLI-EGV is installed at the BESS roof and vents deflagrations upward to a safe location. Insulation is housed inside a metal cassette on top of the deflagration vent panel. The standard burst pressure is 0.1 bar at 22 °C (71.6°F), but can be modified to suit any BESS design, as low as 0.025 bar.
Mechanism
When pressure rises during a deflagration, the vent opens at the defined breaking point and releases pressure out of the BESS into the surrounding area.
Product parameters
| Standard burst pressure Pstat | 25-500 mbar |
| Max. permitted operating pressure | 50 % of Pstat |
| Temperature | – 40 to + 180 °C (– 40 to + 356 °F) |
| Material | Stainless steel |
| Gasket material | FDA approved silicon gasket |
| Tolerance | ± 20 % at standard burst pressure |
| Recommended torque for M10 screws | 20 Nm |
Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
Meets the requirements of NFPA 68
ATEX EC type
examination certificate no. FSA 04 ATEX 1538 X
SIL-Equivalent
SIL 4
Recommended Software
VENT.iNG. | Calculations according to EN + NFPA.
