BESS.Q.Vent

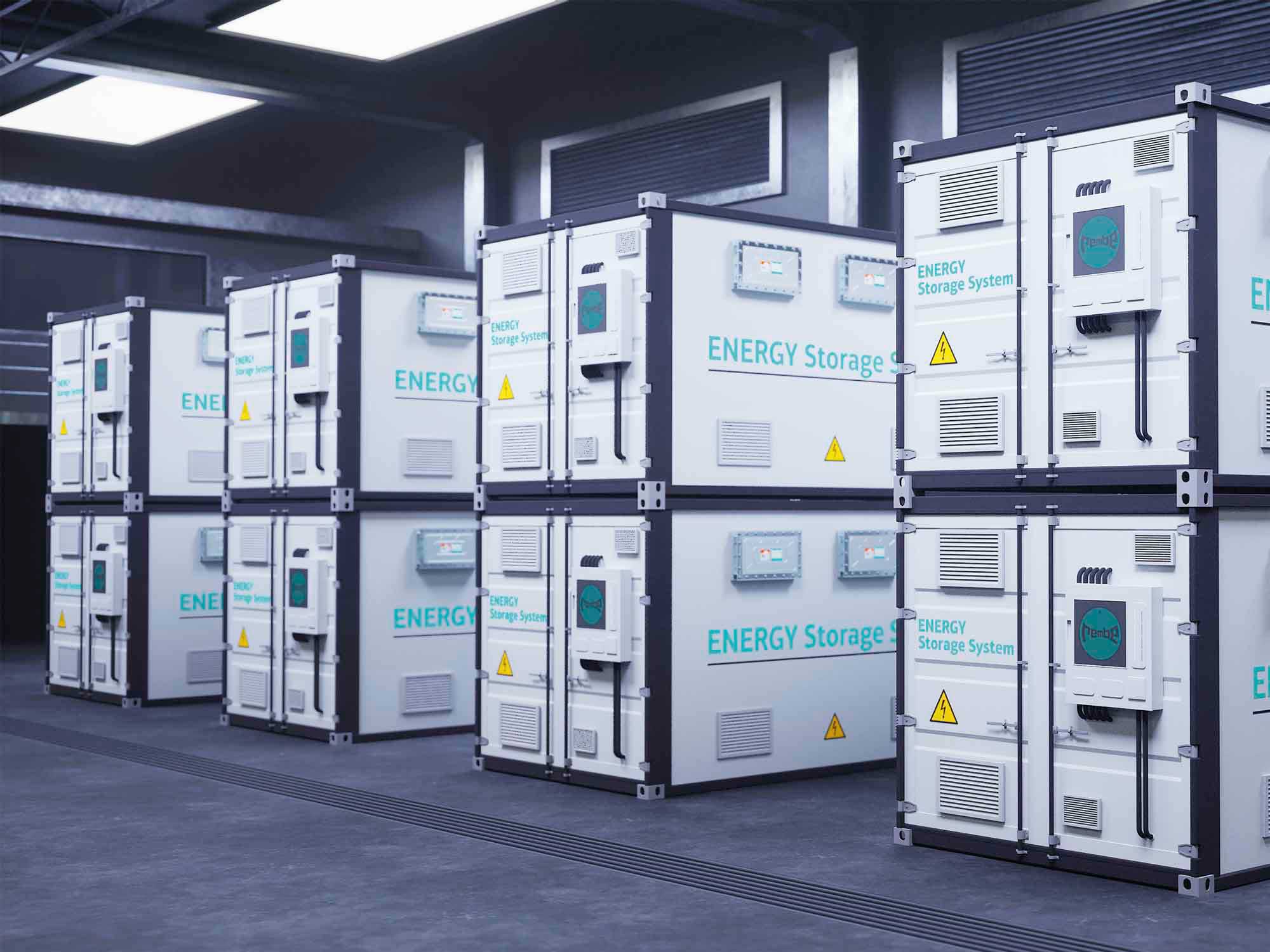

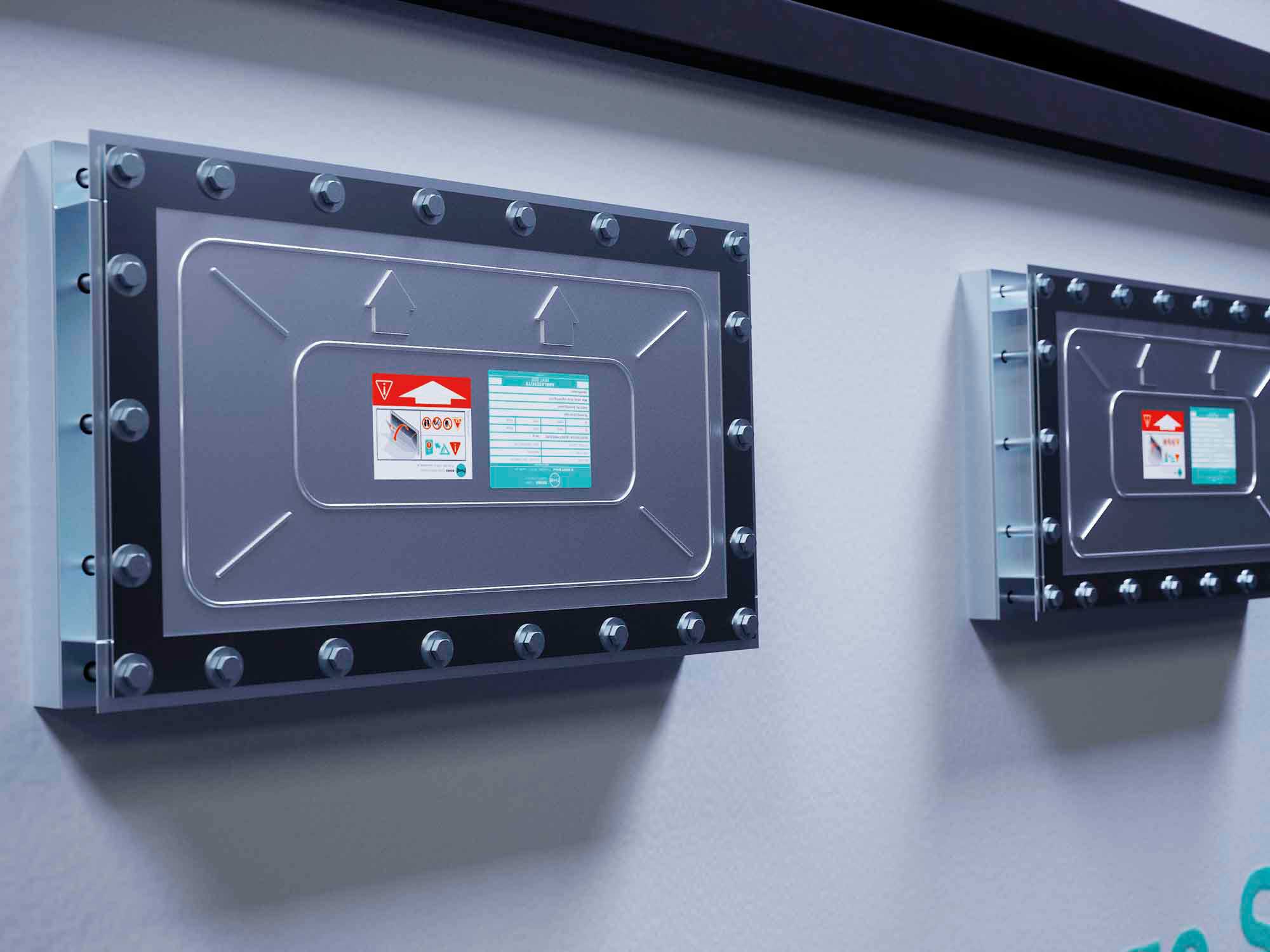

As the pioneer of flameless venting technology, REMBE® has engineered the first flameless vent for battery energy storage systems. BESS.Q.Vent extinguishes the flame and minimises external temperature and pressure effects. It can protect both indoor and outdoor BESS and can be installed on BESS roofs or side-walls.
venting for
indoor BESS
and sensitive
environments.
Application
BESS.Q.Vent is ideal for protecting BESS located indoors, or outdoor BESS in sensitive environments where flame exit and pressure effects are not acceptable.
Mechanism
The special stainless steel mesh filter developed by REMBE® cools the hot flame gases extremely efficiently. This leads to flame extinguishment and further cooling, such that external temperatures and also external pressures are significantly reduced.
Product parameters
| Burst pressure Pstat | 25-500 mbar |
| Max. permitted operating pressure | 50 % of Pstat |
| Temperature | –40 to +180°C (–40 to +356°F) |
| Material | Stainless steel |
| Gasket material | FDA approved silicon gasket |
| Tolerance | ± 20 % at standard burst pressure |
| Recommended torque for M10 screws | 20 Nm |
| Insulation | FEF |
| Fire rating of insulation | UL 94 V 0 |
| Insulation thickness | 25-100 mm |
| Insulation properties | λ= 0.035 W/m*K |
Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
Meets the requirements of NFPA 68
SIL-Equivalent
SIL 4
