Explosion Venting

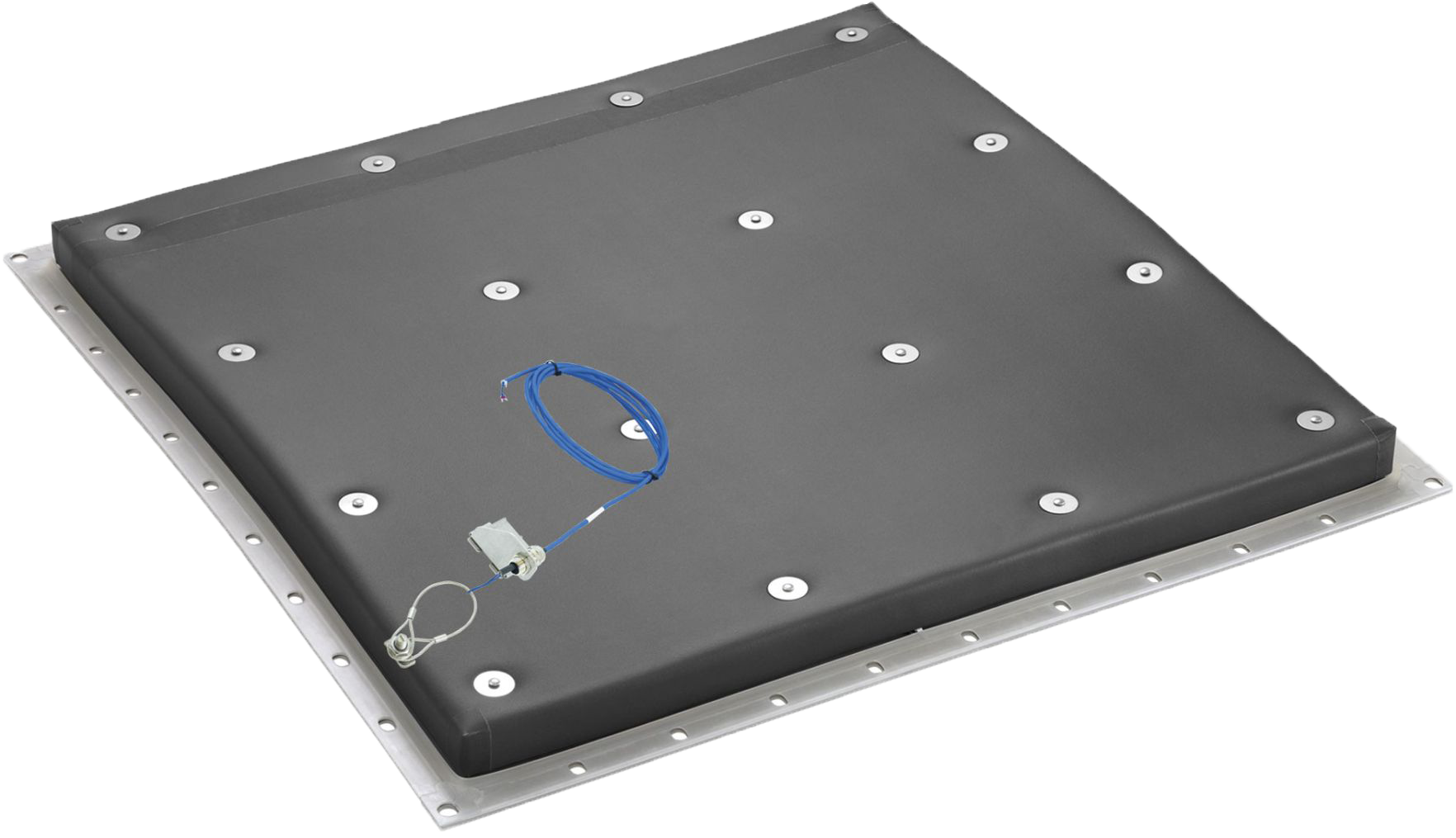

EGV HYP

With the EGV HYP vent panel which is designed for production facilities with highly elevated hygienic requirements, REMBE® is able to provide safety and cleanliness Made in Germany. The innovative sealing feature of the EGV HYP provides continuous and reliable confidence against deposits and bacterial growth. Direct mounting of the vent panel to round vessel bodies is also possible with pre-bending.

for zero to low
negative pressure
applications.

Application

The EGV HYP was specially designed for hygienically demanding systems in the food and pharmaceutical industry, and is often used in critical systems such as spray and fluidbed dryers. The special feature: The patented, full-flat, chamfered gasket system has a flush internal sealing area with the vent panel, and facilitates the avoidance of cross-contamination.

Mechanism

In case of a sudden pressure increase, the EGV HYP vent panel will open and release the pressure from the vessel.

Advantages

Hygienic design will continuously assure high product quality.
Protects against cross-contamination when changing products.
Enables CIP cleaning.
Increased service life of the vent panel under alternating temperature and pressure stresses through the integrated bionic structure.
Reduces sound emissions (e.g. flow assisting hammers) through vent ducts.

Technical Data

Product Parameters

Standard burst pressure Pstat	0,1 bar
Max. permitted operating pressure	50 % of Pstat
Temperature	–40 to +356 °F (–40 to +180 °C)
Material	Stainless steel
Gasket material	Full-scale silicon seal (FDA-licensed, hygienic performance)
Tolerance	± 20 % at standard burst pressure
Process	Non-pulsating
Recommended torque for M10 screws	15 – 20 Nm
