Explosion Venting

ERO

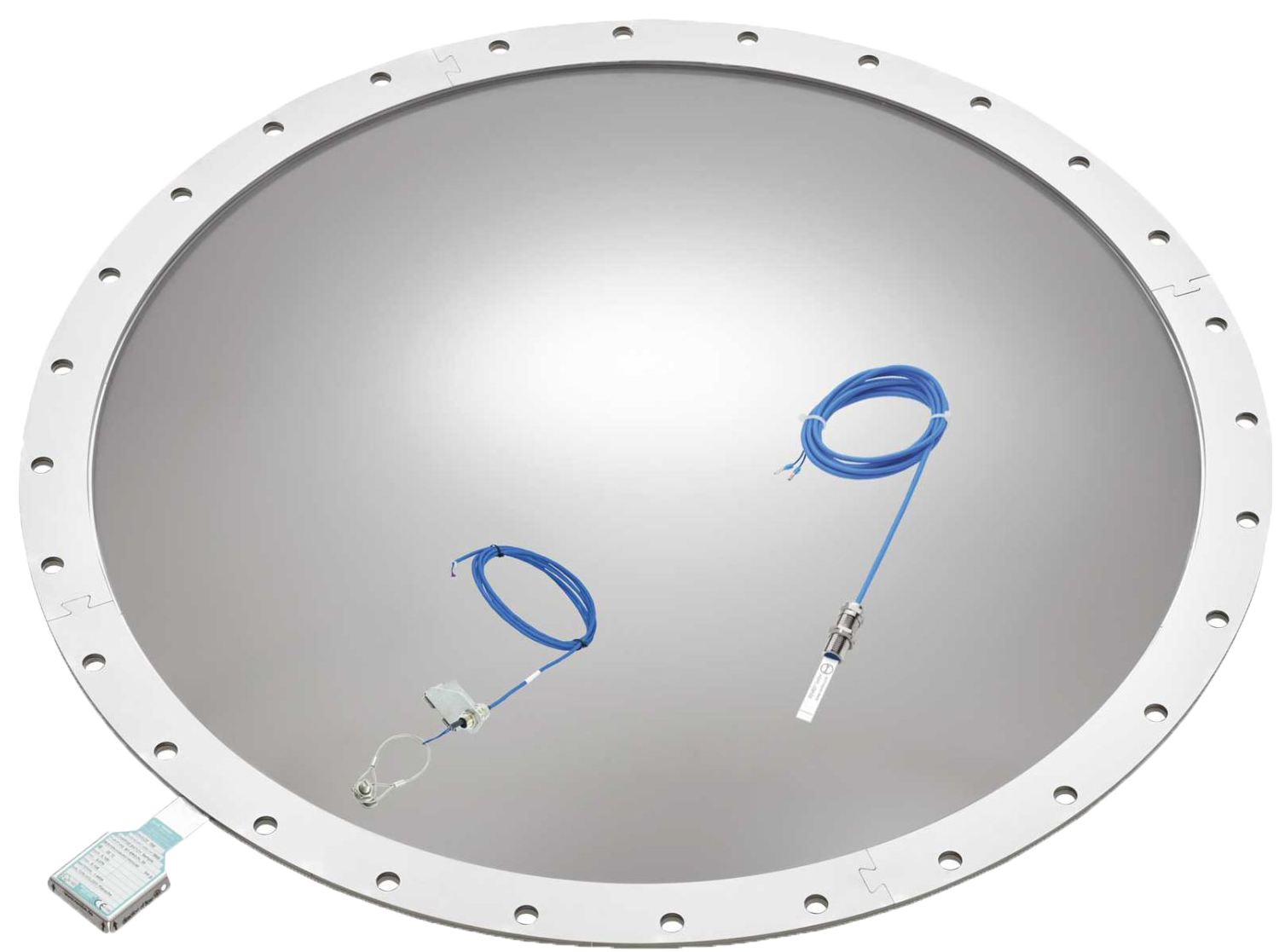

Explosion vent for hygienically demanding processes.

Specially developed for production plants with strict hygiene requirements, REMBE® ensures increased safety + cleanliness with the ERO explosion vent.

for low to
medium pressure
+ alternating
pressure.

Application

The ERO sanitary vent panel is used in the pharmaceutical, chemical and food industry in a broad range of system areas. The smooth and closed stainless steel membrane, which faces the process, optimally seals the vessel and enables sterilization of the vent panel while still installed. The hygienic and robust design enables a reliable response, even at the lowest burst pressures. The working pressure is at 75% of the minimum burst pressure.

Mechanism

In case of a sudden pressure increase, the ERO vent panel will open and release the pressure from the vessel.

Advantages

The only vent panel with USDA approval.
Easy and safe to maintain sterile through the special design of the ERO.
Easy installation and low maintenance effort.

Technical Data

Product parameters

Standard burst pressure Pstat	0,1 bar at 22 °C
Max. permitted operating pressure	75 % of Pstat
Temperature	-40 bis +180 °C (seal dependent)
Material	Stainless steel
Gasket material	silicone, EPDM
Tolerance	± 25 % at standard burst pressure
Standard vacuum resistance	Available on request, depends on diameter nominal and geometry
