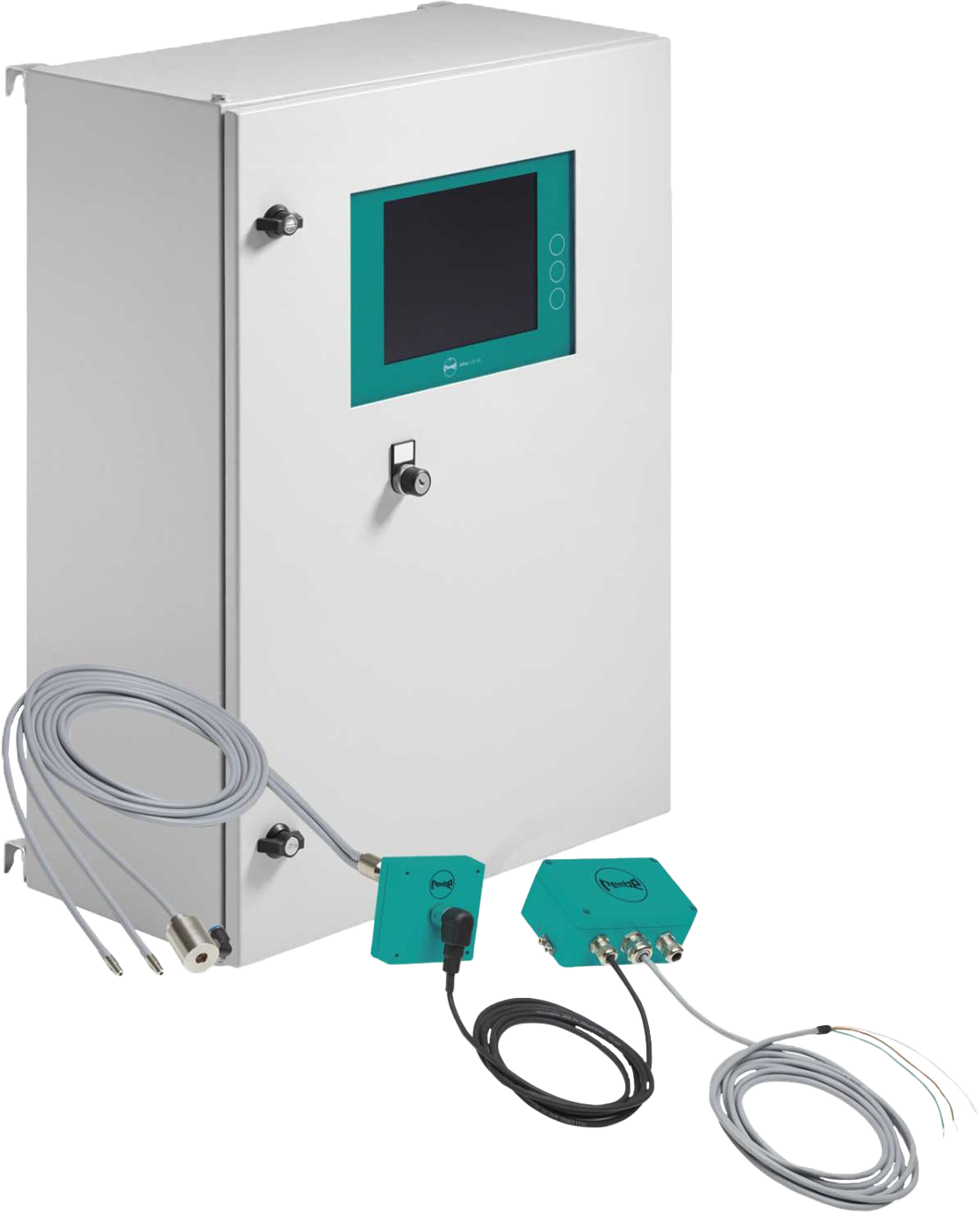

EXKOP® Express
In the event of an explosion, EXKOP® controllers receive a trigger signal (e.g. from the signaling unit of the Q-Rohr®, an explosion vent, from a pressure sensor or IR-Flame detector) and activate the connected isolation systems which prevents an explosion from propagating.
The EXKOP® system is ideal in combination with explosion vents or flameless explosion venting solutions.
all isolation
devices.
Advantanges
- One controller for all isolation systems (Quench valves QV II and QV III, Q-Bic™ as well as slide valves RSV and REDEX® Slide).
- Self-monitoring safety electronics with operating data storage up to 100.000 events.
- REMBE® iQ Safety Cockpit ready.
- System status and clear messages reported immediately via the touch panel (optional).
- Online remote access possible (optional).
on each EXKOP® controller
The IR Flame Detector is an infrared sensor that is used for immediate detection of explosion flames and thus, together with the EXKOP® Express control system, for explosion isolation of systems in order to prevent the propagation of an explosion to other parts of the plant.
Product Parameters
| Supply voltage | 110 V AC/60 Hz – 230 V AC/50 Hz** |
| Max. no. of connectable detectors (lines) | 2 to 36 (x3) |
| Isolation systems | QV II, QV III, Q-Bic™, RSV, REDEX® Slide |
| Max. no. of connectable isolation units | Depends on the special application |
| Power consumption | Depends on the special size |
| Potential-free relay contacts | from 4 to 64 |
| Wire cross-section (fine wire with ferrule) | 0,5 – 0,75 mm² |
| Ambient temperature | 32 – 122 °F (0 – 50 °C) |
| Protection type | IP 65 |
| ATEX category | zone free |
| Housing material | Sheet steel housing with powder- coated front |
| Dimensions (W × H × D) | Depending on the number of detectors and decoupling systems |
| Weight | Depending on the number of detectors and decoupling systems |
| Remote access | – |
| Touch Panel | ✓ |
Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
** Depends on the size of the controller.
- animal feed productions
- aspiration plants
- brewery
- chemical industry
- conveyors
- destoners
- elevators
- filters
- food
- food production
- mills and grinding plantsmix
- mixers
- pharmaceutical industry
- recycling
- screens
- silo
- spray dryers
- wood processing
Certified in accordance with EN 15089
ATEX EC type examination certificate no. FSA 04 ATEX 1537 X
ATEX EC type examination certificate no. DNV 25 ATEX 68993X
ATEX EC type examination certificate no. FSA 15 ATEX 1659 X
