EXKOP® QV III
Isolation with quench valves.

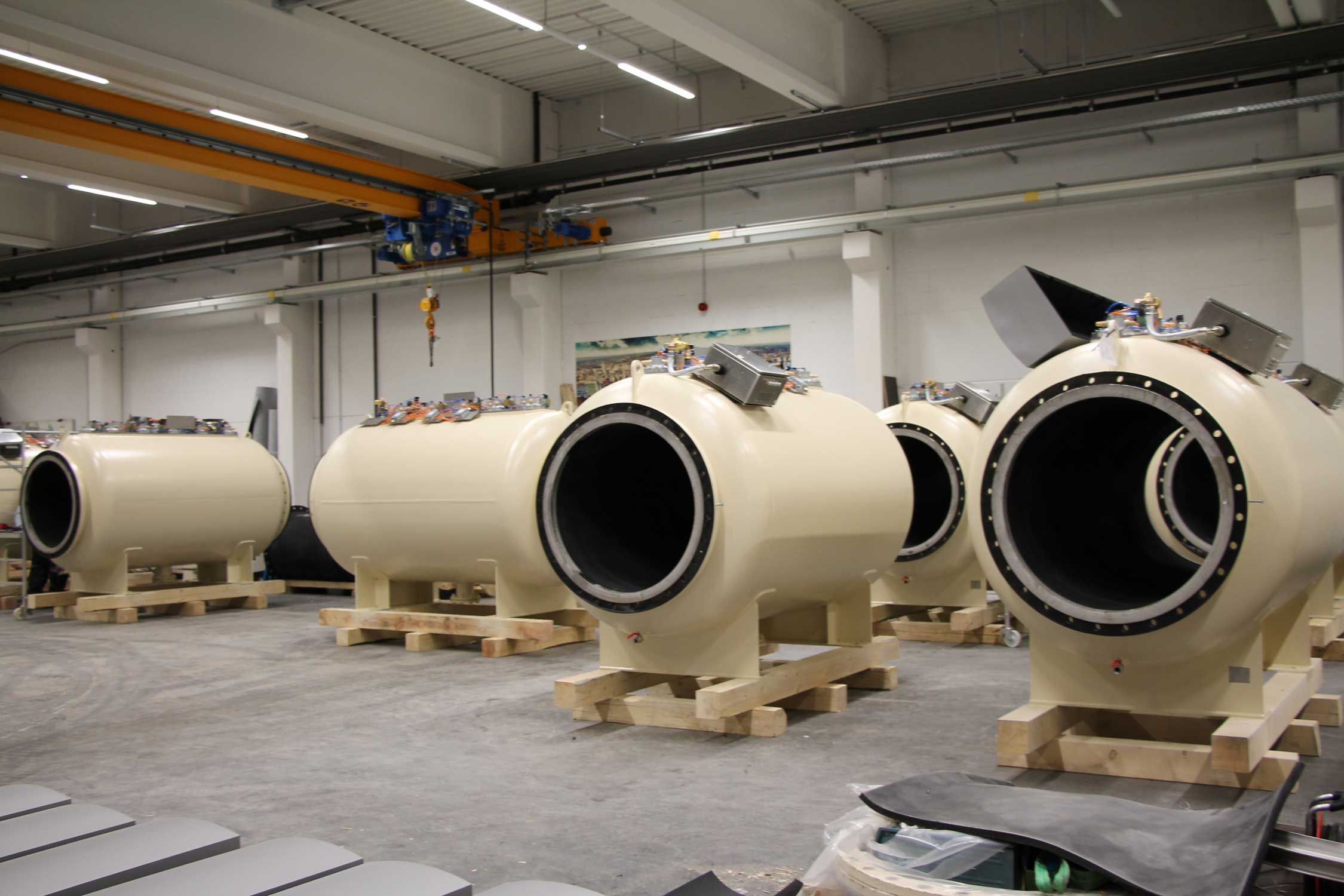

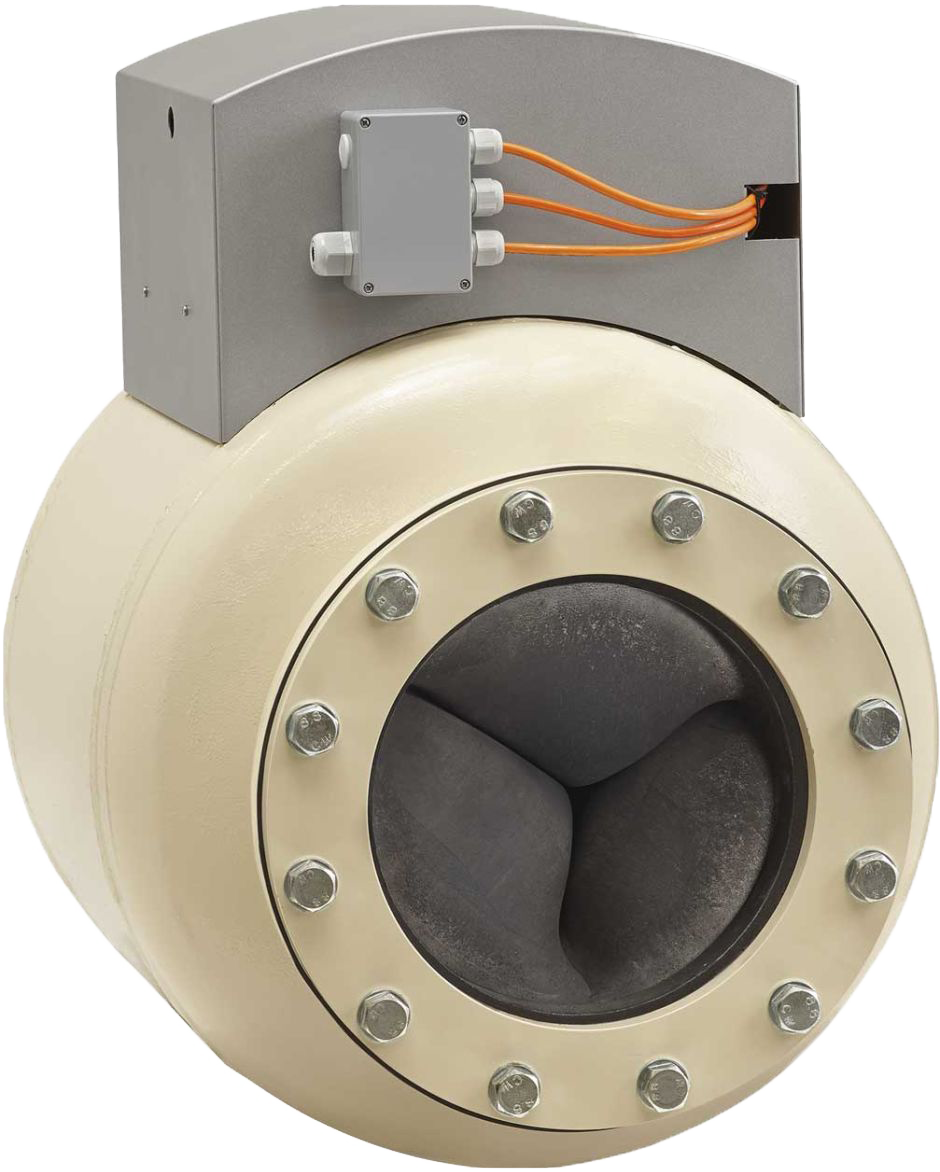

The REMBE® EXKOP® QV III quench valve is an isolation device that is installed in a pipeline to prevent explosions from propagating to other parts of the processing system. To do this, the quench valve is connected to a controller (EXKOP® Express or EXKOP® TriCon).
bidirectional
isolation.
Application
REMBE® EXKOP® QV III is compatible with a Spark arrester (e.g. between a mill and the product filter) and an overpressure limiter (e.g. between a silo vehicle and the silo).
Mechanism
In the event of an explosion, the controller receives a trigger signal (e.g. from the signaling unit of the Q-Rohr® or an explosion vent, from a pressure switch or spark detector) and activates the connected quench valves. These close within a few milliseconds and thus prevent the explosion from spreading to adjacent plant components. After being triggered, the quench valves can be put back in operation once again at the touch of a button.

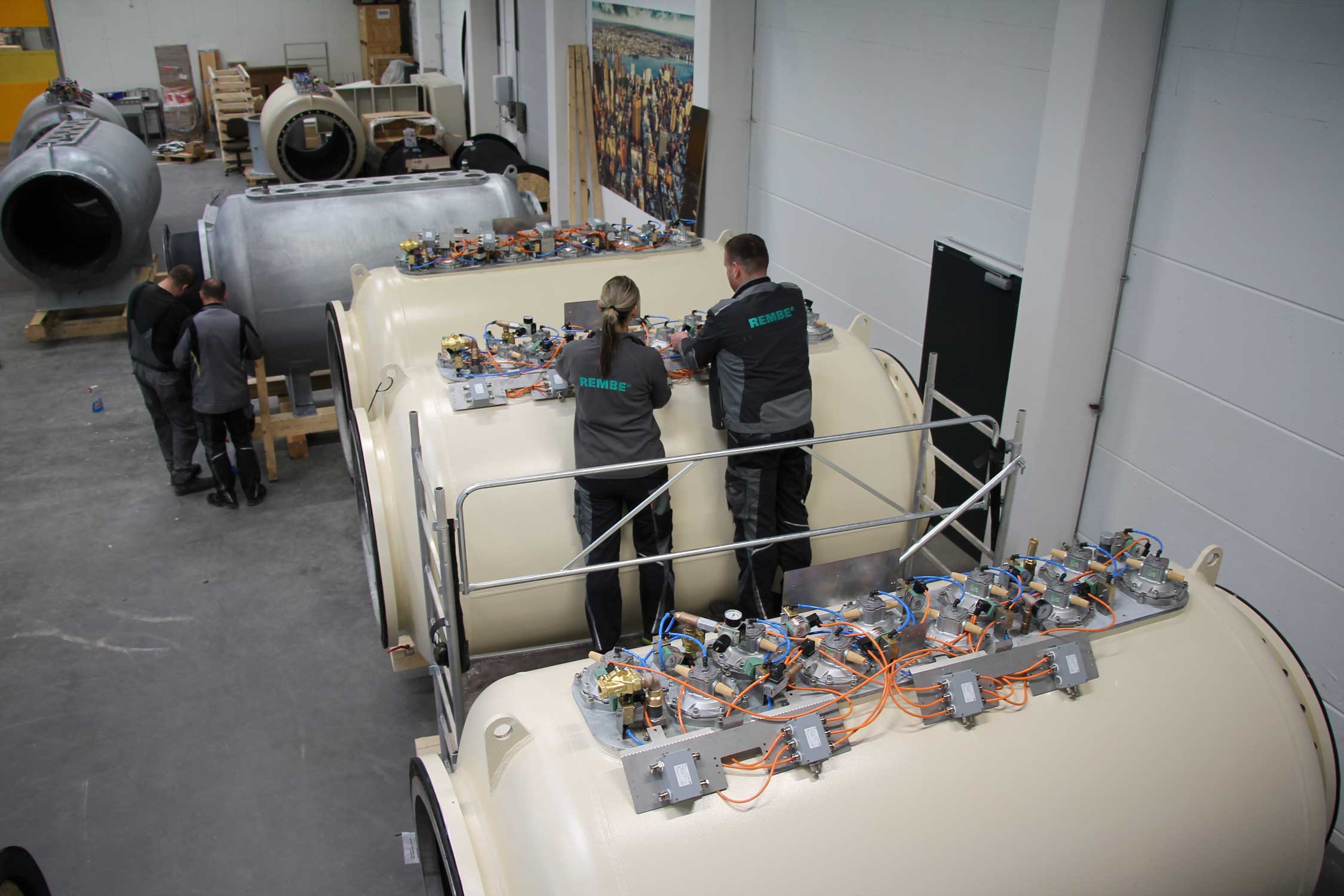

EXKOP® QV III

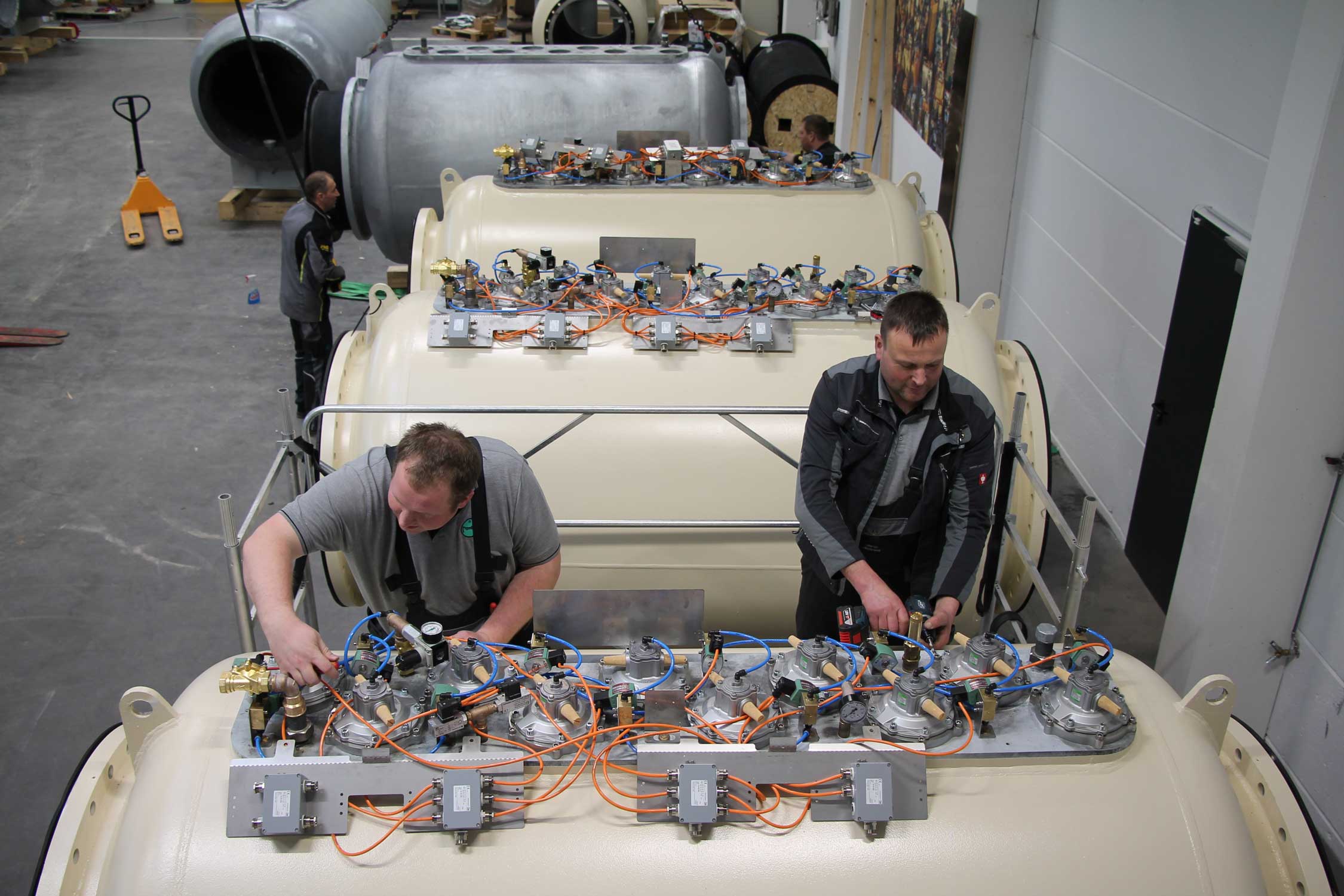

EXKOP® QV III
- Compact design for flexible integration into the production process.
- High level of safety due to very rapid closing times.
- Returns to operation immediately after triggering.
- Fail Safe mechanism automatically closes the valve if the power supply fails or the valve is manipulated.
Product Parameters
| Diameter nominal** | DN 300 – DN 600 |
|---|---|
| Housing material | St 37.2, painted (RAL 1015) |
| Flanges | acc. EN 1092-1 Typ 11 (PN 10)*** |
| Operating limits Medium | organic and chemical dusts |
| Operating limits KSt | ≤ 200 bar × m/s |
| Operating limits Pmax | ≤ 10 bar |
| Operating limits MZE | ≥ 3 mj |
| Operating limits Pred | ≤ 1,0 bar |
| Operating limits Allowable flow rate | ≤ 30 m/s |
| Operating limits ATEX category indoor/outdoor | 1D/3D |
| Suitable for use in food processing industry | ✓ |
| Ambient temperature | +41 up to +140 °F (+5 up to +60 °C)**** |
| Installation position | any |
| Power supply | 24 VDC from EXKOP® controller |
| Compressed air supply | 6.0 bar gauge pressure from system network |
| Compressed air connection | 8 mm (Festo) |
| Protection type | IP 65 |
* Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
** Other nominal diameters available on request.
*** Replaces DIN 2632, PN 10.
**** Other ambient temperature available on request.
