Q-Bic™ Modular Platform
In practice, many vessels, silos and devices are connected by pipes, pneumatic conveyors and dust extraction or aspiration lines. If a dust explosion occurs, the flames and pressure waves can spread through these conduits to other parts of the plant. Pre-compression and flame jet ignition exacerbate the explosion in connected vessels. The result is a series of secondary explosions that causes even more catastrophic damage. An isolation system prevents explosions from propagating and thus minimizes the consequences of an explosion. It ensures optimum protection for interconnected parts of the plant. Active systems have detectors or sensors which register the pressure rise or flames and trigger countermeasures, e.g. closing a valve.
Active isolation.
Application
The Q-Bic™ explosion isolation system is specifically suitable for large pipes or complex elongated geometries such as in conveyors or bucket elevators in various industry applications.
Advantages
Advantages

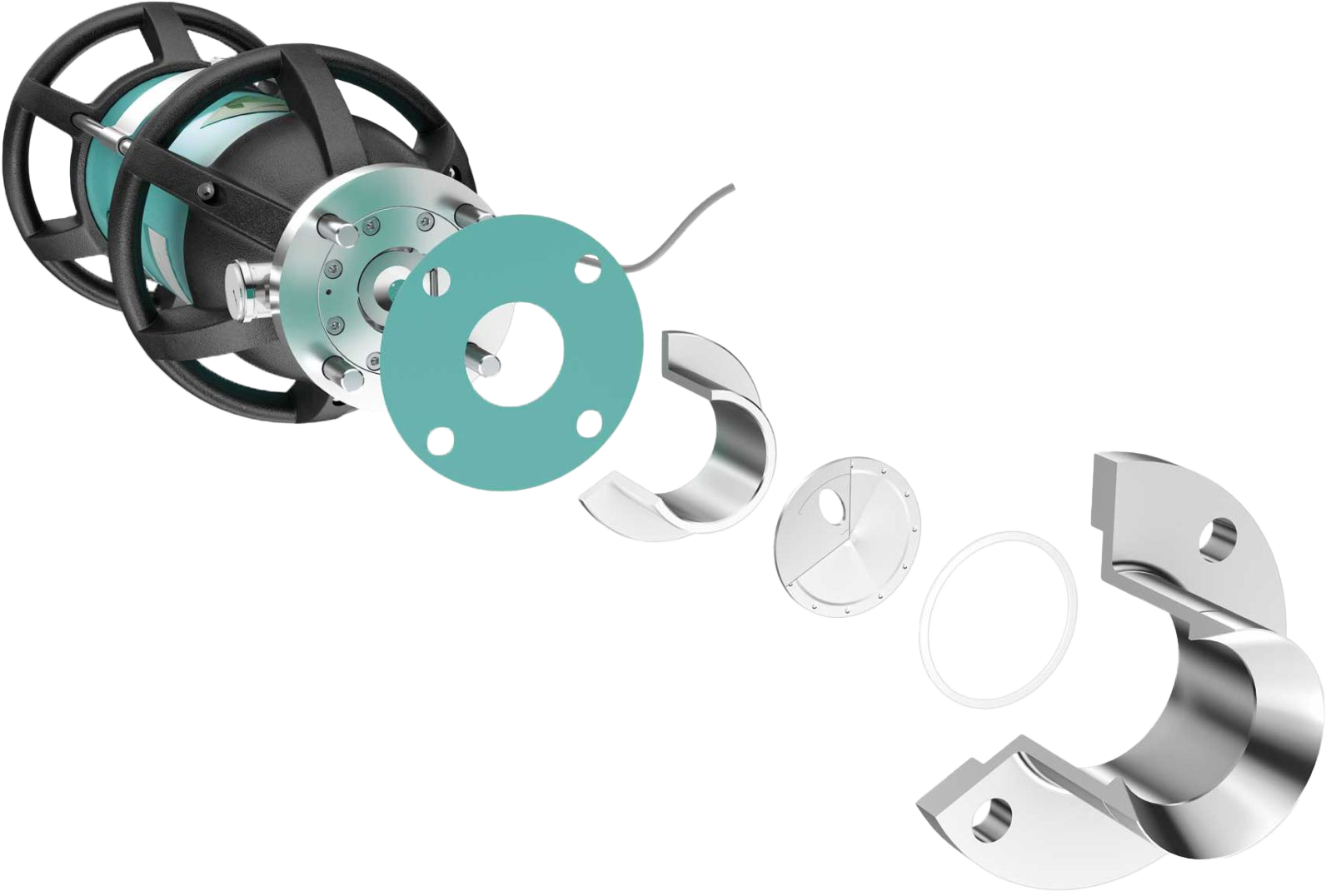

Mechanism
The Q-Bic™ explosion isolation system detects an explosion in its very earliest stages and extinguishes the explosion flames within milliseconds by introducing pressurized extinguishing powder QXP™. The special nozzle system SJX™ ensures optimum distribution of the extinguishing powder in the pipe ensuring reliable explosion isolation.
- Effective discharge of the QXP™ via the spin jet extinguishing nozzle SJX™.
- Green extinguishing powder QXP™ prevents cross contamination after activation.
- Electrically monitored pressure gauge.
- Easy handling due to integratedhandles.
- Most cost-effective way to isolate large pipes.
- Flexible use due to variable mounting distances.
- Suitable for use at ambient temperatures from -4 to +140 °F (-20 to +60 °C).
- Hygienic mounting material available.
- Smart triggering device without explosives simplifies import.
- animal feed productions
- aspiration plants
- brewery
- chemical industry
- chemical- petrochemical
- destoners
- filters
- food
- food production
- mills and grinding plants
- mixers
- pharmaceutical industry
- screens
- silo
- spray dryers
- wood processing
ATEX EC type examination certificate no. DNV 25 ATEX 68992X

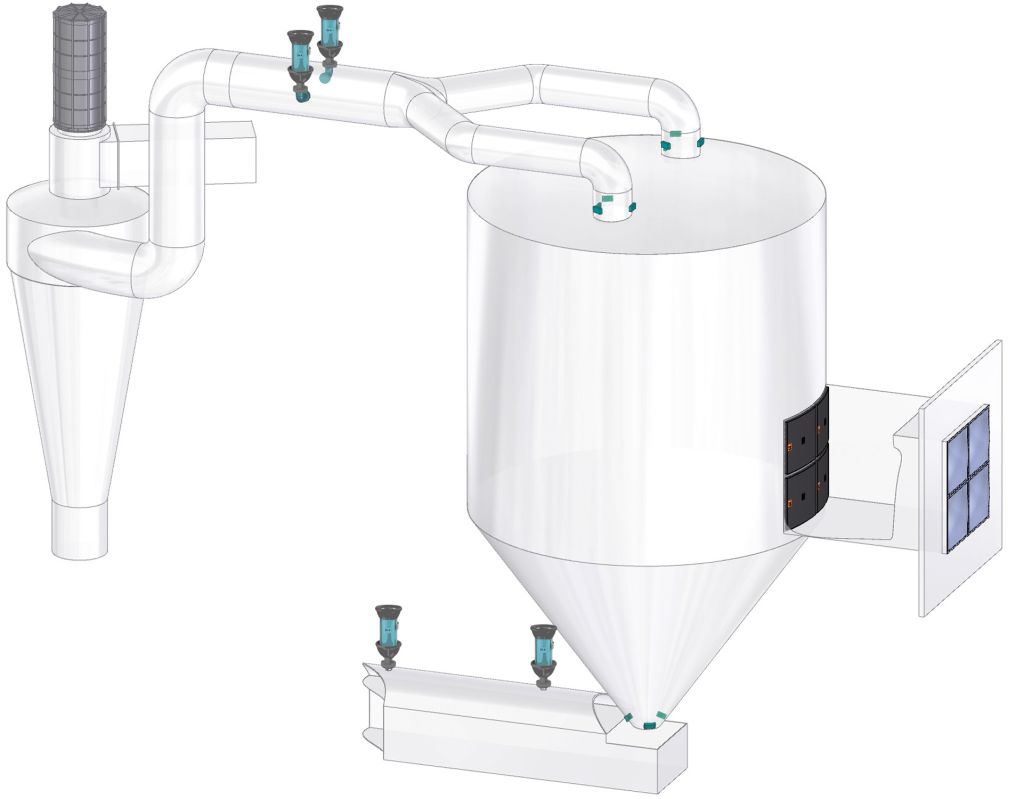

REMBE® Q-Bic™ on a spray dryer.
Usually, spray dryers are protected with a combination of isolation systems and vent panels. If a free and safe relief is not possible, the vent panels are replaced by a flameless venting device. To prevent explosion propagation, the connecting pipes are usually isolated with Q-Bic™ chemical barriers.

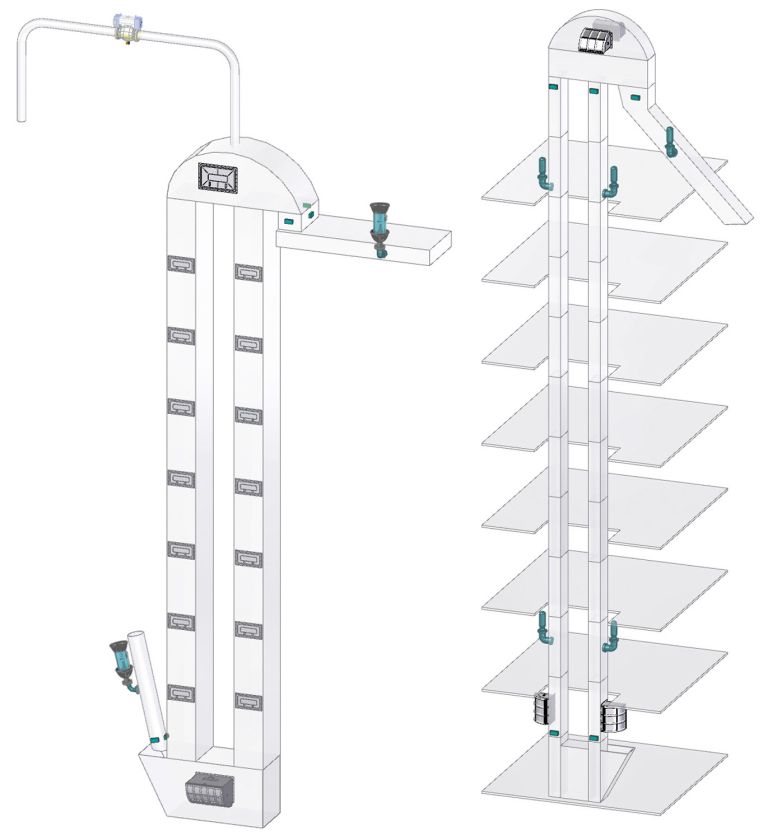

REMBE® Q-Bic™ on an elevator.
Elevators convey large amounts of (combustible) bulk materials, and thus pose a high risk for an explosion. The size and strength of the bucket elevator determine the number and mounting distance for the required protective systems, depending on the bulk material involved. The isolation of the up/down stream conveyors is usually performed with rotary valves or Q-Bic™ chemical barriers.
