Q-Flap NX

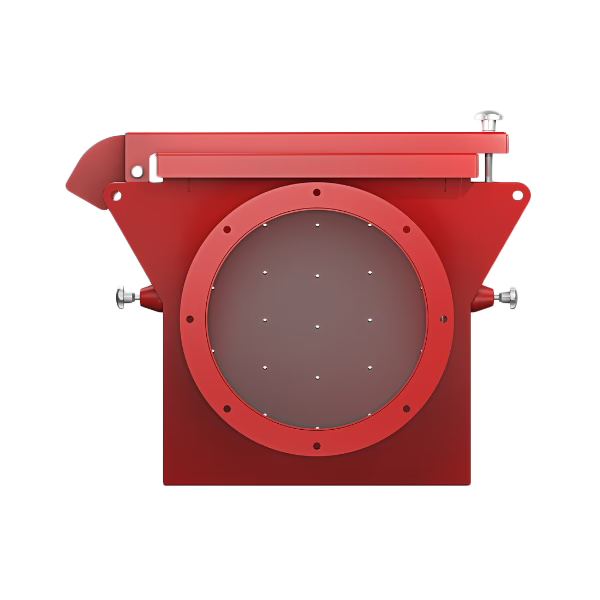

The Q-Flap NX is a passive isolation valve designed to prevent the propagation of deflagrations through ducts or pipelines. Built in accordance with NFPA 69, it provides dependable explosion isolation for both metal and organic dust applications, certified up to Class ST3.
Available in sizes up to DN 1000, the Q-Flap NX is ideal for standard horizontal installations and offers proven protection for dust collection and process equipment handling combustible materials.
Application
Suitable for processes requiring one-way explosion isolation under moderate dust loading conditions. The Q-Flap NX and NX II are commonly installed on dust collection systems, cyclones, mills, and similar equipment to prevent flame and pressure propagation through connected ductwork.
Mechanism
Designed with a flap that closes quickly in response to backpressure within the duct, as occurs during a deflagration. Once closed, the integrated locking mechanism secures the flap to prevent fluttering or flame passthrough, ensuring reliable isolation of connected equipment.
- Meets or exceeds NFPA standard 69 requirements.
- Flexible use in your process: Q-Flap NX is available for all standard nominal diameters up to DN 1000.
- Inspection cover opens easily for maintenance without completely removing the device.
- Is suitable for up to ST3 dusts
- Monitoring of flap position and dust accumulation are standard.
- Other options available upon request.
- Q-Flap NX available up to DN 1000 and can be installed in a variety of orientations in pull flow applications.
Technical data can be found in the Q-Flap NX product information sheet.
- animal feed productions
- aspiration plants
- brewery
- chemical- petrochemical
- filters
- food
- food production
- mills and grinding plants
- mixers
- recycling
- wood processing
Certified in accordance with EN 16447
ATEX EC type examination certificate no. LOM11ATEX7047X
Meets the requirements of NFPA 68
