Q-Rohr® DFE Maritime
New IMO regulations, new challenges.
The situation: The next phase of the IMO emission regulations for shipping intends to reduce the permitted sulphur and nitrogen content of fuel from the current level of 3.5 % to a level of 0.5 % in 2020. Due to the IMO tier 2 and 3 regulations, shipping will increasingly be required to use alternative sources of propulsion such as dual-fuel engines and LNG-powered plants.
The challenge: When it is running on gas, a fault in the engine can allow a flammable mixture of gas and oxygen to occur in the exhaust system. In the worst case scenario, this could ignite and cause an explosion. The result would be a failure of the drive system and electrical power supply. Essential instruments such as radios, radar and navigation equipment could be adversely affected. In addition, bursting sections of the plant would create a serious risk of injury to persons working in the engine room.

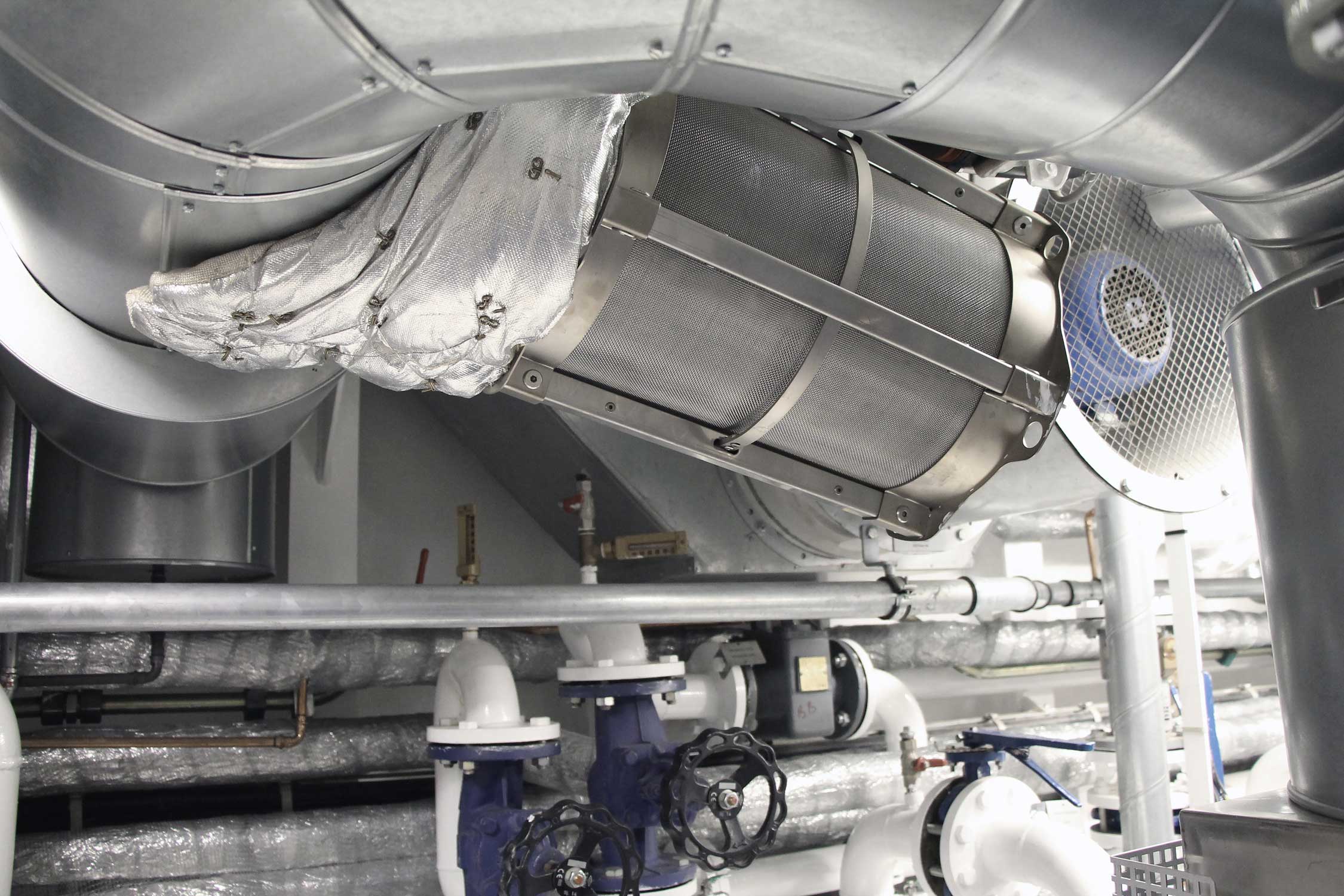

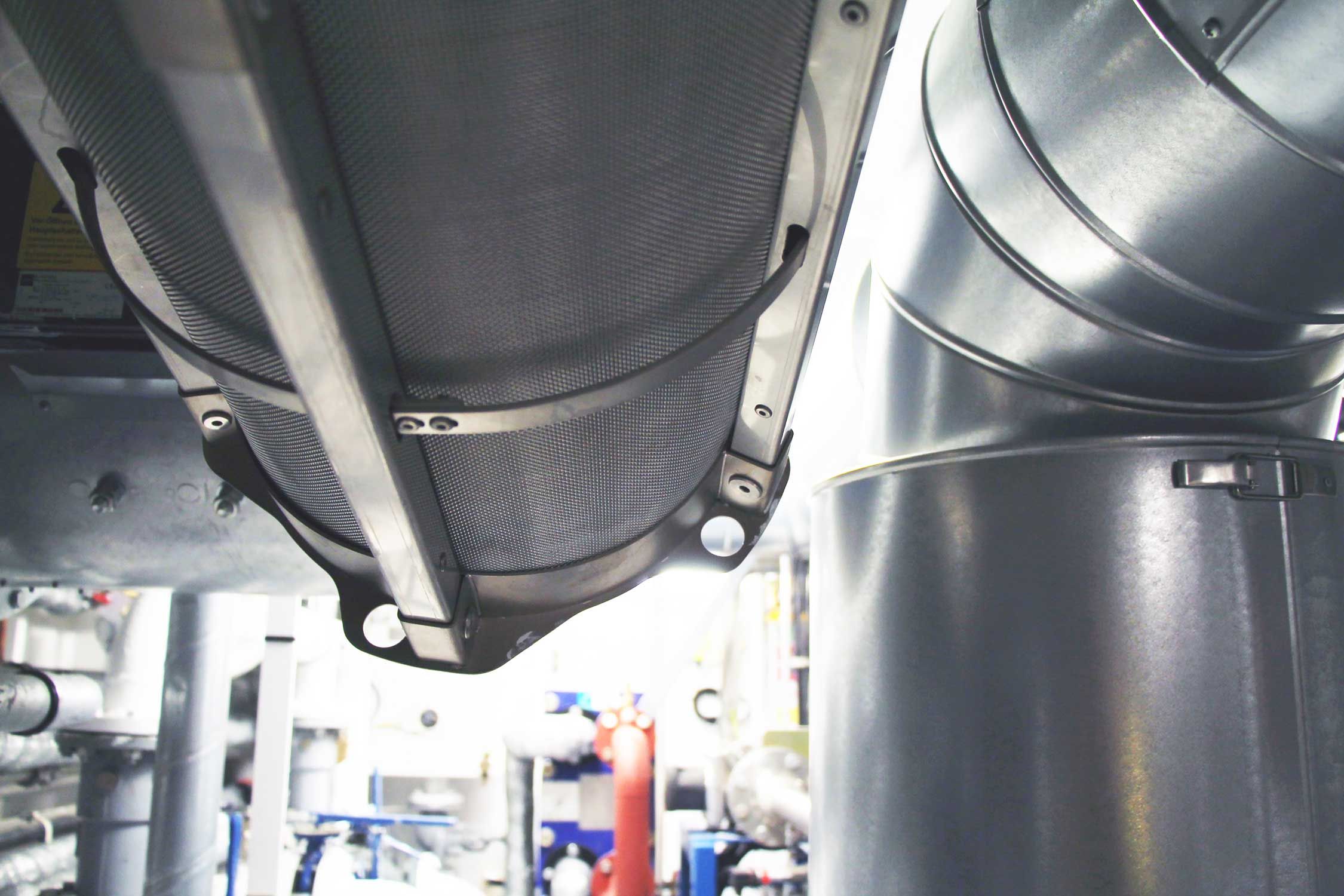

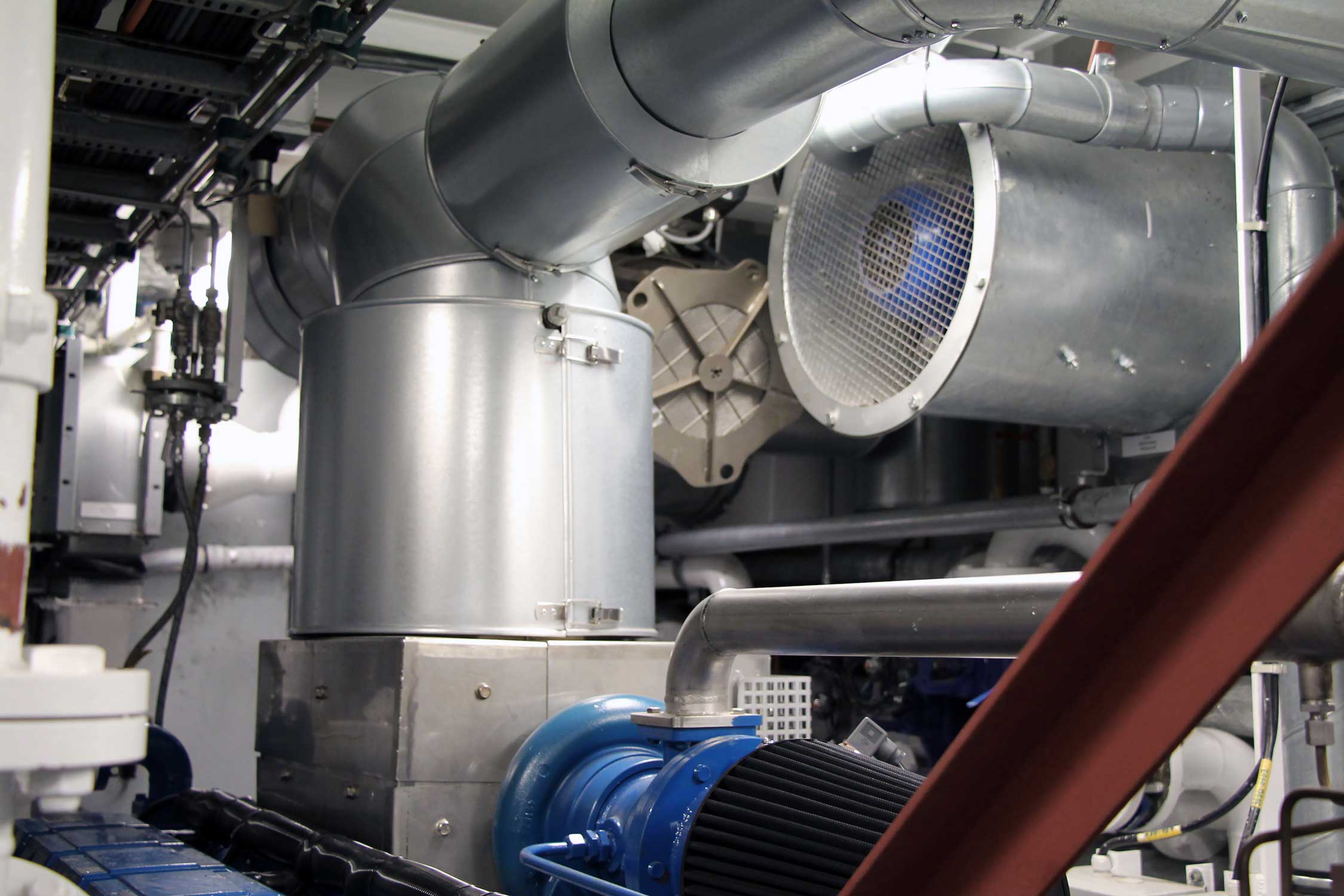

Q-Rohr® DFE Maritime permits flameless explosion venting in the ship’s hull and thus protects the surrounding area against the consequences of an explosion. Normal operations can recommence on the ship very quickly after an explosion occurs.
ducts of
Duel-Fueled
Engines.
Application
Q-Rohr® DFE Maritime permits flameless explosion venting in the ship’s hull and thus protects the surrounding area against the consequences of an explosion. Normal operations can recommence on the ship very quickly after an explosion occurs.
Mechanism

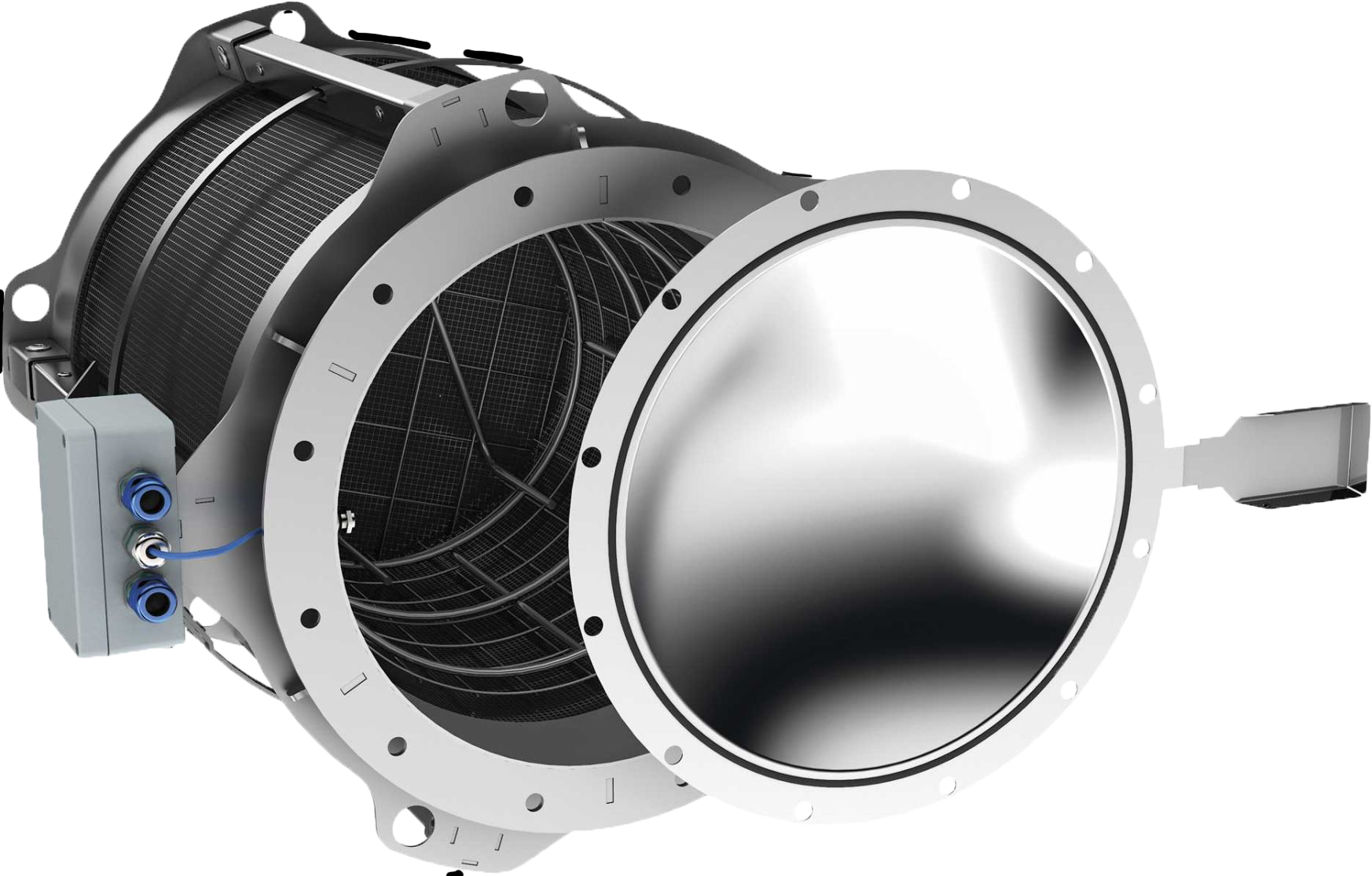

The hot flame gases, which can reach temperatures of up to 2.732 °F (1.500°C), are cooled extremely efficiently in the special stainless steel mesh filter inlet developed by REMBE®. This reduces the volume of gas ejected and extinguishes the explosion flame discharge.
The disks provide reinforcement.
The seals are available for all process conditions: Also suitable for high temperatures or sterile requirements.
- Maritime class certification in accordance with DNV-GL, LR, BV, ABS.
- Rapid restart of operations.
- Flameless pressure venting in the ship’s hull.
- 100 % seal tightness, to eliminate danger of asphyxiation.
- Compact, lightweight design.
- 100 % venting efficiency.
- Individually definable opening pressure.
- 100 % stainless steel for corrosion resistance.
- Connection flange in accordance with DIN 86044.
- No maintenance required, visual inspection by a technician is sufficient.
- REMBE® stainless steel filter ensures a high level of noise reduction during normal operation and in the event of an explosion.
- The compact, lightweight design of Q-Rohr® DFE Maritime enables it to be installed even in confined spaces.
| Burst pressure Pstat | 0.1 to 0.5 bar |
| Operating temperature | 14 to 1022 °F (−10 to +550 °C) |
Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
- Dual-fuel engines
Patents
DE 38 22 012
US 7,905,244
Certified in accordance with EN 16009, EN 14797
Application in accordance with EN 14994
Developed in accordance with EN 16009
Recommended Software
VENT.iNG. | Calculations according to EN + NFPA.
