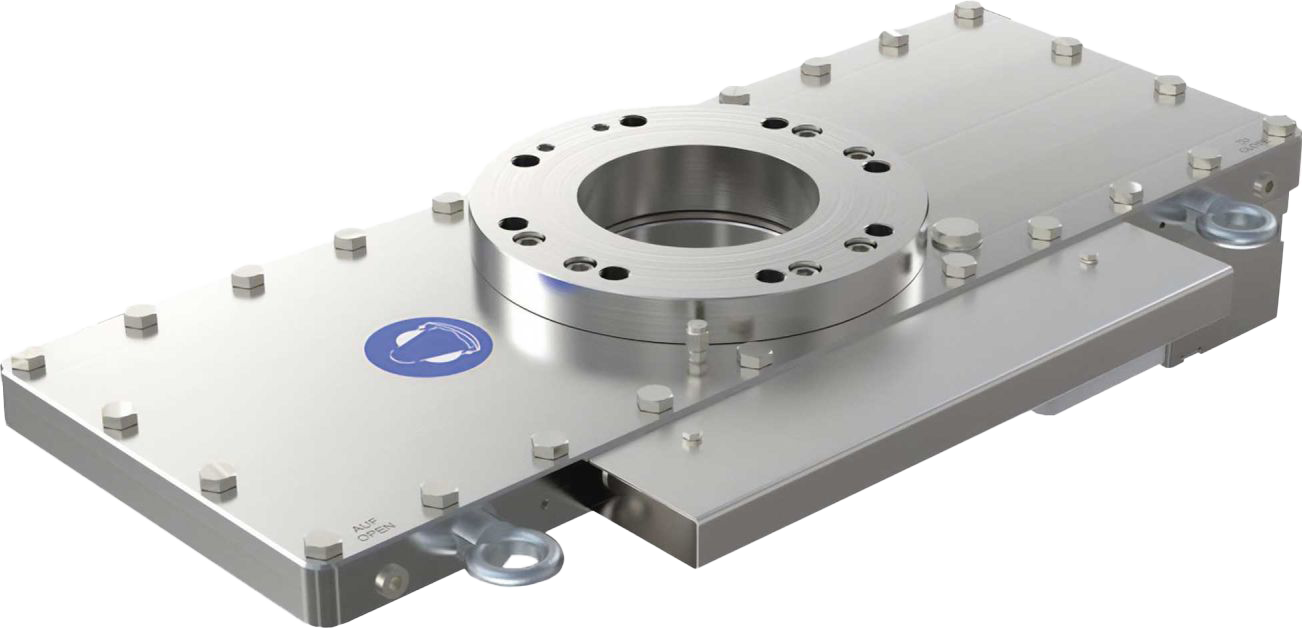

RSV
Whether for silos, mills or extraction systems, our slide valves enable safe isolation, and are also available for demanding CIP, dust or gas applications. The RSV slide valve is suitable for the isolation of fully developed explosions to the maximum explosion pressure.
at maximum
explosion pressures.
Application
The RSV Slide is available nominal pipe sizes from DN 50 to DN 500. Thanks to its practical design, knife gate valves are suitable for all flow velocities and dust loads, they do not cause any pressure drop, and can be installed vertically, horizontally or at any angle in pressurized or vacuum applications.
Mechanism
The system to be protected is equipped with pressure and/or infrared detectors. These can detect an explosion and send a signal to the knife gate valve. Depending on the size, one or more gas generators are activated, which close the slide valve within milliseconds. The closed slider blade effectively prevents the propagation of flames and pressure waves. Fast closing times also enable extremely short installation distances. During normal operation, the slide valves can be opened and closed pneumatically.
Active Isolation
Active Isolation
- Wide application range
- Extremely fast closing times.
- Short installation distances thanks to a compact design.
- Flexible installation options at any angle.
- No pressure drop.
Product Parameters
| Type | active action: slide valve gets closed by gas generator |
| Size | DN 50 – DN 500 |
| Pressure | for low, medium or high pressure: no pressure drop in the pipe |
| Dust load | for low or high dust load: the slide valve is no obstacle in the pipe |
| Medium | suitable for all common media: metallic dusts, hybrid mixtures, gases and organic dusts |
| Flow velocity | for low or high flow velocities, more than 25m/s |
| Prozess temperature | for low, middle or high process temperature, up to 200 °C |
| Mode of operation | single acting, double acting |
| Installation position | any installation position, vertical, horizontal or any other angle |
- aspiration plants
- brewery
- chemical industry
- chemical- petrochemical
- food
- food production
- mills and grinding plants
- mixers
- silo
Certified in accordance with EN 15089
ATEX EC type examination certificate no. FSA 17 ATEX 1669 X
ATEX EC type examination certificate no. FSA 14 ATEX 1647 X
