Flameless venting vs. conventional venting is one of the most common questions plant engineers and Safety Managers face when specifying explosion protection for a dust collector, silo, or bucket elevator. The first instinct to question is whether or not one is safer than the other. It is actually a more practical question about the equipment environment and what the consequences of an open fireball would be in that given environment.
Neither method is inherently safer than the other. Applied correctly, within the limitations established by testing and NFPA 68, both flameless venting and conventional venting protect the enclosure volume and the personnel working around it. The real variable is application fit: does the installation allow for an open fireball, or does it require the flame and combustion byproducts to be contained due to being indoors, close to equipment, or personnel?
This post walks through the location-first considerations REMBE uses to help facilities make this call, the specific conditions that point toward each approach, the most common mistake we see in the field, and the questions worth working through before specifying either method.
The First Question: Where Is the Equipment Located?
The single most important factor in choosing between flameless venting and conventional venting is location: is the protected equipment indoors or outdoors? That one question sets the starting point for every other consideration in the specification.

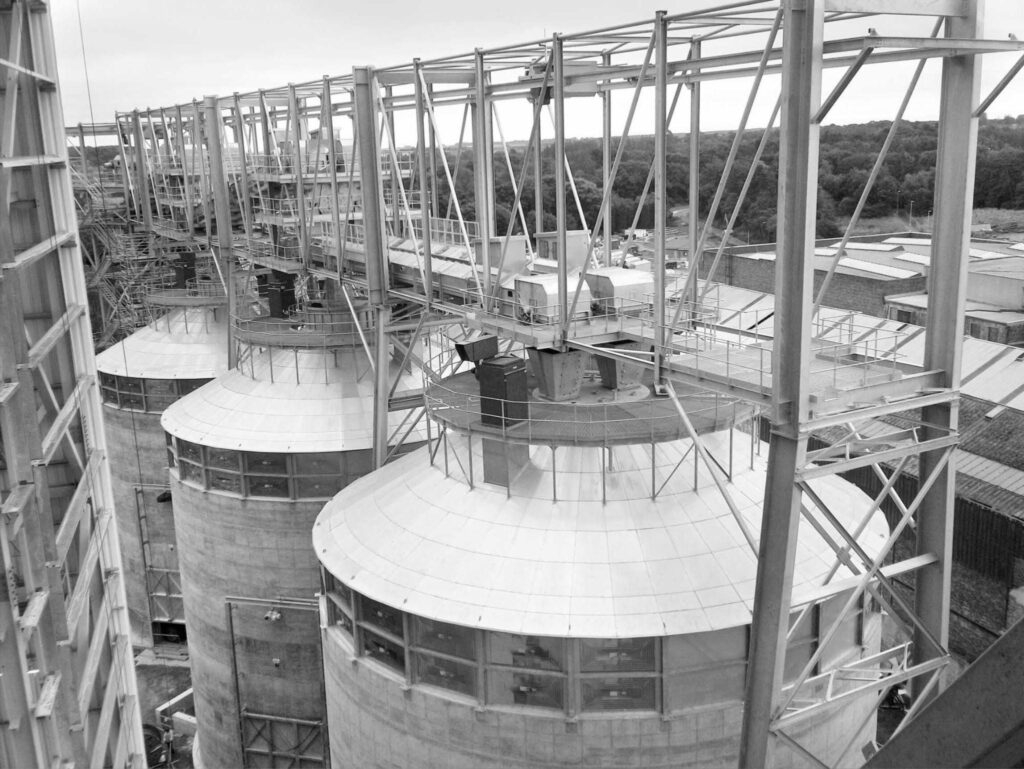

Outdoor equipment: In the large majority of cases, conventional venting is the appropriate and most cost-effective choice for equipment installed outdoors. Conventional venting releases an open fireball, and outdoors, that discharge in many cases has room to dissipate safely without introducing a hazard to personnel or nearby structures.

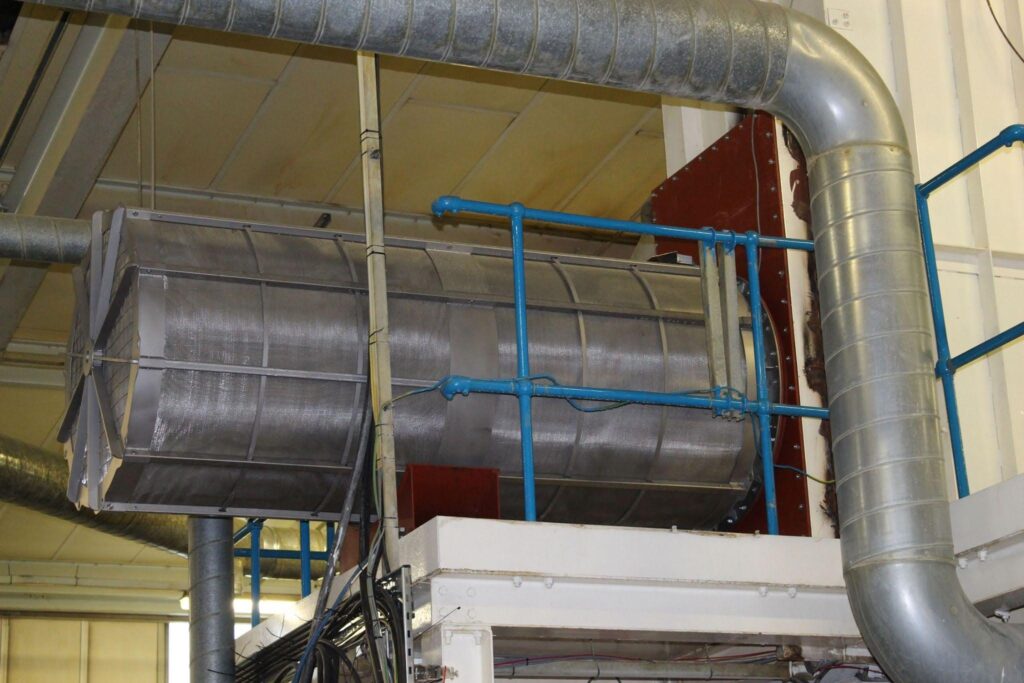

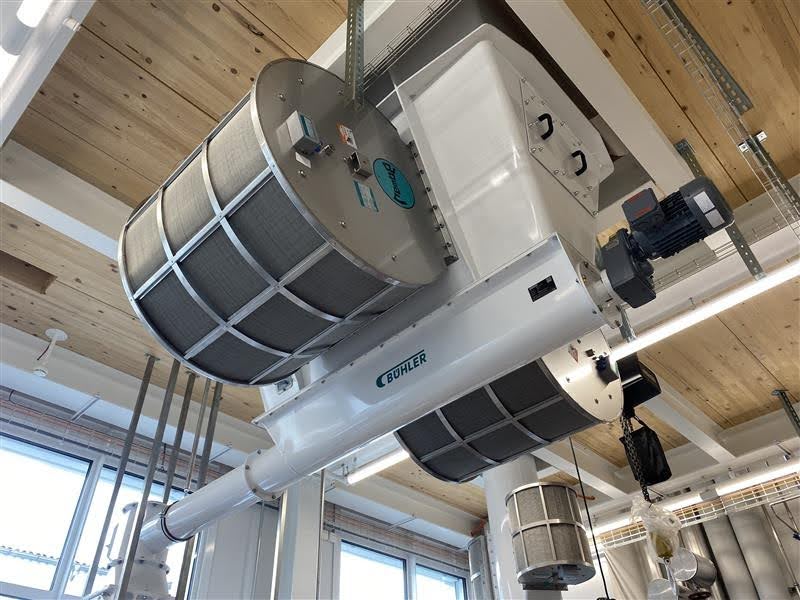

Indoor equipment: Once equipment is installed inside a building, flameless venting becomes the primary conversation. Releasing an open flame and pressure wave into an occupied space is not an acceptable outcome, so the venting method has to contain the flame and combustion byproducts rather than discharge them or find a way to direct the fireball outdoors.
Indoor equipment near an exterior wall: In some cases, equipment installed close enough to an exterior wall can use a ducted conventional vent that discharges through the wall to the outside. This keeps the lower cost of conventional venting in play while still meeting the indoor constraint, provided the ducting path is short enough to where calculations allow it.
The underlying logic holds regardless of location: conventional venting releases an open fireball. The question worth asking is not simply which vent to specify. It is whether that fireball, wherever it goes, creates a secondary hazard.
When Conventional Venting Is the Right Call
Conventional venting is the preferred starting point whenever the installation is outdoors and the fireball trajectory is clear of personnel, high-traffic areas, and critical equipment. When those conditions hold, conventional venting is the most cost-effective option by a wide margin, and there is little reason to specify anything more complex.
Before finalizing a conventional specification, map where the fireball will actually go. A vent that faces a parking lot, a loading dock, or a congested equipment yard introduces a new hazard even while it successfully protects the collector itself. A protected enclosure does not automatically mean a safe installation.
Fireball length is not guesswork. NFPA 68 provides the calculation methodology for estimating how far a fireball can extend from a given vent, and depending on enclosure volume and the Kst value of the dust involved, that distance can run well over 100 feet. Larger enclosures produce longer potential fireballs, simply because there is more fuel and therefore a longer sustained combustion.
When conventional venting is the right general approach but the default discharge direction introduces a hazard, deflection of the fireball is a viable option. The REMBE Targo Vent offers a way to keep the cost advantage of conventional venting while solving the trajectory problem. The Targo Vent directs the fireball at a controlled angle, which can turn an otherwise unsafe discharge direction into a workable installation without moving to flameless venting. The Targo Vent installs flush to the panel and adds no profile to the existing vent panel, a sleek design that doesn’t create any protrusions observed with other deflection devices.
Any conventional vent installation requires a defined safety zone in front of the vent opening(s), and that zone should stay clear during operation. If keeping this zone unoccupied is not practical, an alternative solution should be considered.
When Flameless Venting Is the Required Solution
In the following conditions, flameless venting becomes the ideal solution for indoor explosion protection, rather than simply one option among several:
- Indoor equipment with no practical path to duct a conventional vent to the outside. This is the most common scenario that leads engineers to flameless venting.
- Indoor equipment where the ducting run would be too long and/or the dust properties are too severe for a conventional ducted approach to perform reliably.
- Outdoor equipment is congested or where a defined safety zone cannot be established and fireball deflection does not fully resolve the hazard. This situation is less common, but it is a valid application for flameless venting outdoors.
The other option for indoor protection is chemical suppression. Suppression works by detecting the earliest stage of a deflagration and injecting a chemical agent, typically sodium bicarbonate, to extinguish the flame before pressure has a chance to build. Where flameless venting is a viable fit, it is worth understanding why we position it as the preferred alternative to suppression: a suppression activation discharges sodium bicarbonate or a comparable agent into the system, and the cleanup before the equipment can return to service is significant. Flameless venting does not carry that same downtime or cleanup cost, which makes it the more practical choice in scenarios where either approach could technically apply.
What NFPA 68 Requires and What It Does Not Decide for You
NFPA 68 is the accepted industry standard for deflagration venting, and it applies to both conventional and flameless methods. What the standard does not do is tell an engineer which method to use for a given installation. It provides the framework for sizing, placement, and performance requirements once that decision has been made.
Kst, the deflagration index for a given dust, is one of the core inputs into every vent sizing calculation. Confirmed Kst combustible dust data, not a generic material category, should always drive the calculation. Dusts with higher Kst values burn faster and require more venting area to keep enclosure pressure within safe limits.
Vent sizing depends on more than one variable: enclosure volume, enclosure strength (Pred), the specific dust type, its Kst and Pmax value, and the geometry of the enclosure itself. Changing any one of these shifts the calculation, which is why a solution that works for one installation does not automatically transfer to another.
Vent size and quantity for dust collector venting are not one-size-fits-all, even across two units of the same model. The same dust collector installed in two different applications may require a different venting solution depending on the dust type and configuration involved. Treating fixed vent area as a standard feature that applies across every installation is one common engineering error in this space, and it traces back to an obsolete vent sizing methodology that predates current calculation methods.
NFPA 68 also addresses flameless venting directly, covering the performance requirements and certification expectations for flameless vent devices. Both conventional and flameless approaches operate under the same NFPA standard, which is part of why neither one is categorically safer than the other.
The Most Common Mistake Facilities Make with Explosion Venting
Based on site visit observations, the single most common installation mistake we see is the absence of a defined safety zone around a conventional vent. A vent installed at platform level, where operators stand during routine maintenance, with no restricted zone established, is a serious safety and compliance failure, regardless of whether the vent was sized appropriately.
A correctly calculated vent can still create a hazardous installation if personnel have no defined boundary telling them where they cannot be stationed during operation. A safety zone is not a suggestion. It is a required part of a complete venting specification, opposed to an afterthought layered on after the equipment is installed.
A second common mistake is installing a conventional vent where the panel cannot open fully. Structural members such as I-beams in the discharge path, or equipment positioned too close to the vent, can prevent the panel from functioning as designed. Physical clearance in the vent’s discharge direction has to be confirmed at the design stage, not discovered after the equipment is in place.
When a safety zone is difficult to establish, or the fireball trajectory cannot be made safe through positioning alone, the Targo Vent is often the preferred option. Redirecting the discharge to a safe angle resolves the constraint in many installations. Where it does not, the installation should be evaluated for flameless venting or for a repositioned conventional vent.
Flameless vents introduce a different kind of oversight requirement. The flame arrester mesh has to be inspected for product buildup, and because flameless vents conceal the panel from external view, that inspection has to happen from inside the enclosure during planned shutdowns. Covers are available to reduce buildup between inspections, but they do not eliminate the need for the inspection itself.
Pre-Selection Checklist: Questions to Work Through Before Specifying a Venting Method
These are the questions REMBE walks through with facilities before making a flameless venting vs. conventional venting call. The answers determine whether conventional venting, a ducted conventional approach, or flameless venting is the right starting point.
- Is the equipment located indoors or outdoors? Outdoor installations start with conventional venting; indoor installations start with flameless venting or a ducted conventional approach.
- If indoors, is the equipment close enough to an exterior wall for a ducted conventional vent? Confirm the distance, the wall construction, and whether the dust properties are compatible with this approach before specifying it.
- If outdoors, does the fireball trajectory introduce a secondary hazard? Map personnel paths, high-traffic zones, and critical equipment within fireball range before confirming a conventional specification.
- What is the dust type, and are aluminum or other metal dusts present? These dusts require a flameless vent certified for high-temperature combustion, such as the REMBE Q-Rohr 6T or 6T AL.
- What is the geometry and volume of the enclosure being protected? These parameters drive vent sizing and quantity under NFPA 68, as well as certified application ranges for flameless venting. One vent is rarely the correct answer without a calculation behind it.
- Can defined safety zones be established and enforced during operation? If not, a conventional vent at that location needs a deflection solution or should be reconsidered entirely.
How REMBE Approaches Venting Selection
Consultation Before Specification
REMBE’s role begins with the same location and application questions outlined above, not with a product recommendation. The goal on every project is to find the best solution and determine which venting concept fits the installation before sizing or specifying any equipment.
That process includes reviewing dust type and Kst data, enclosure dimensions, facility layout, and any applicable code requirements. Proper application of NFPA 68 is the standard we work from, not a suggestion or optional approach.
Q-Box R3leaf for High-Efficiency Flameless Venting
The Q-Box R3leaf is REMBE’s third generation of rectangular flameless explosion vents, and it carries a higher venting efficiency than the previous generation. It is rated for ST2 dusts, meaning Kst values up to 300, which covers a broad range of organic and process dusts.
The Q-Box R3leaf also has a higher volume-per-unit rating than its predecessor, the Q-Box II, which reduces the number of devices required in larger enclosures.
Q-Rohr 6T and 6T AL for Metal and Aluminum Dust Applications
Standard flameless vents are not rated for metal or aluminum dust. Aluminum in particular burns at a significantly higher combustion temperature than organic dusts, and the flame arrester material in a standard flameless vent cannot absorb and extinguish that heat fast enough to fully quench the flame.
The Q-Rohr-3 6T is tested and certified for metal dust applications, including common materials like iron dust. The Q-Rohr-3 6T AL is certified specifically for aluminum dust, which presents the highest flame-temperature challenge of the two. This is a meaningful differentiator: standard flameless vents in the broader market generally do not cover this use case.
Targo Vent for Fireball Deflection on Conventional Installations
The Targo Vent is not a standalone vent. It is an add-on to a conventional vent that redirects the fireball at a controlled angle, which is why we think of it as conventional-plus rather than as its own category.
It fits well when outdoor conventional venting is otherwise viable, but the default discharge direction faces a hazard zone, when ground-level safety zones are difficult to enforce, or when an elevated fireball trajectory would resolve the personnel risk. In each of these cases, the Targo Vent preserves the cost and simplicity of conventional venting while solving the trajectory problem. It is important to note that directional venting devices reduce the vents’ efficiency. It is critical to identify the need for this prior to installation, as additional vents may be required if this becomes something added on at a later date.
After an Event: What Proper Protection Means in Practice
If a deflagration event occurs and the venting was specified and installed correctly, the enclosure and personnel are safe. There is typically a cleanup and investigation period, and if fire succeeded the event, that timeline can be more involved. However, the protected volume, whether it be a dust collector, silo, etc., can generally be reused, the explosion vent itself can be replaced, and the facility can return to operation without a significant burden.
Without proper protection, the outcomes are more serious: capital equipment damage, potential building damage, and the risk of employee injury or worse. Weighed against those outcomes, the cost of a correct specification up front is small.
Applied Correctly, Both Methods Protect. The Job Is Getting the Application Right.
The question of flameless venting vs. conventional venting does not have a universal answer, and that is the point. Flameless venting and conventional venting are equally safe when each is specified for the installation it was designed for. The risk is not in choosing one method over the other. It is in applying one where the other belongs or in applying either without proper sizing, placement, and safety zone planning.
Facilities that standardize on a single method across every piece of equipment, without evaluating each installation individually, are taking on risk they may not be aware of. Each enclosure, each dust type, and each facility layout deserves its own assessment.
If you are specifying new explosion protection or auditing an existing venting concept, connect with REMBE’s engineering team for a consultation on your specific installation.
