It is one of the more common questions in industrial explosion protection: which is safer between passive vs active explosion isolation? The framing assumes one system type is inherently better. The real answer might surprise you.
Both passive and active isolation systems, when properly certified and installed within their tested parameters, are equally safe. The correct question is not which type is safer in the abstract but which type is appropriate for your specific system, process, and application. Getting that wrong, regardless of whether the installed system is passive or active, is where compliance gaps and protection failures originate.
This post covers how each system type works, the application conditions that favor one over the other, the misconceptions that cause facilities to over-specify or under-protect, and the questions engineers and EHS teams should work through before making an isolation selection.
The Core Difference: How Passive and Active Isolation Work
The distinction between passive and active isolation comes down to whether the system requires electronic activation to respond to a deflagration event.
Passive isolation operates mechanically. The most common passive device is a backdraft damper, sometimes referred to as a check valve. A flap within the valve sits open during normal operation. When a deflagration produces a back-pressure wave traveling through the duct, the flap slams shut, stopping the event from propagating to interconnected equipment. The only required sensors are a position sensor for the flap and an accumulation sensor. The REMBE Q-Flap NX and NXII are examples of engineered passive isolation devices in this category.
Active isolation uses a detection-activation sequence. A sensor, typically a pressure switch/transducer or infrared detector, identifies the early signature of a deflagration and sends a signal to a controller. The controller triggers the isolation device, either a high-speed pinch valve, a fast-acting slide gate, or a chemical barrier system, in milliseconds. The REMBE Quench Valves QVII and QVIII and the REDEX® Slide are active isolation valves; the Q-Bic system is REMBE’s chemical isolation solution.
The mechanical simplicity of passive systems is also their primary limitation: they protect in one direction. When the flap closes, it protects what is upstream of the flap. It does not protect against an explosion originating upstream of the valve.
When Passive Isolation Is the Right Choice
Passive isolation is generally the preferred specification when the application permits it. Fewer components, simple electronics, lower long-term service burden. When a passive system is correctly applied, it is a straightforward, reliable protection solution.
Passive isolation is typically appropriate when:
- Single dust collector or vessel with one inlet/outlet duct
- Low dust loading (light, fugitive dust rather than dense product being conveyed)
- Non-sanitary or non-hygienic process (no pharmaceutical-grade or food-grade requirements)
- Standard duct sizes (roughly 3 to 50 inches) where flap geometry is practical
- Explosion risk originates from one direction
In these configurations, a properly certified passive damper installed within its tested distance limits provides code-compliant protection with a lower total cost of ownership than active alternatives.
When Active or Chemical Isolation Is Required
There are process conditions where passive isolation is not viable, regardless of preference. Active or chemical isolation is required when:
- Explosion risk from two directions: interconnected vessels with combustible atmospheres
- High dust loading or dense-phase pneumatic conveying or dilute-phase pneumatic conveying, where clogging would compromise a passive flap

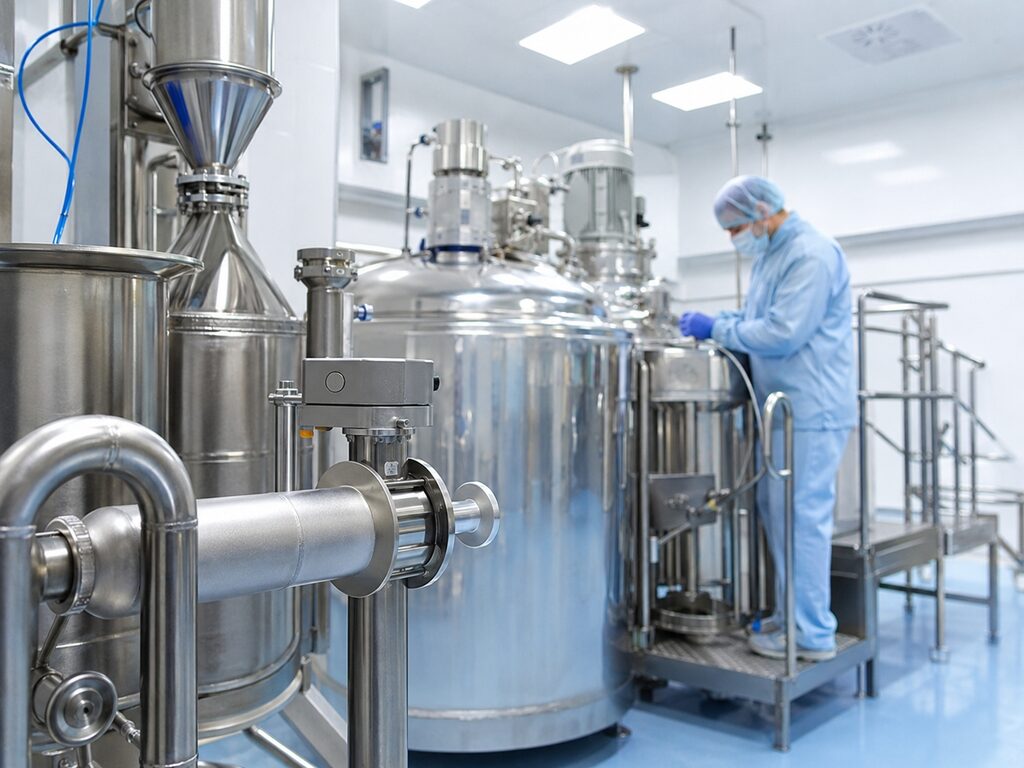

- Sanitary, hygienic, or pharmaceutical-grade processes where product buildup in a flap mechanism creates contamination risk
- Very large duct diameters (larger than 50 inches) where passive flap geometry is impractical
- Process requirements that demand detection-triggered response rather than pressure-actuated response

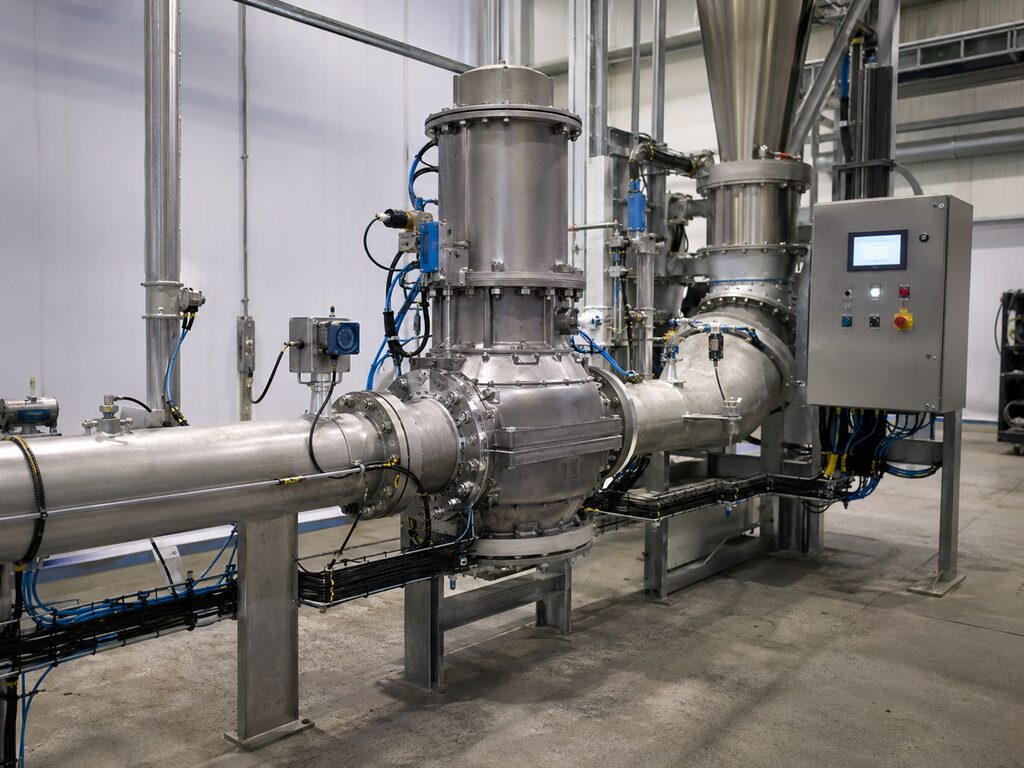

Active pinch valves are typically a practical and cost-effective option for dense-product conveying, commonly used in lines ranging 3 to 8 inches. For abrasive materials or applications requiring a knife gate configuration, the REDEX® fast-acting slide gate provides an active isolation option that handles high dust loads and flow velocities without creating a pressure drop in the line. Chemical barriers become the appropriate choice for very large ducts or for sanitary or hygienic applications where a passive damper’s mechanical geometry creates contamination risk that is not acceptable in pharmaceutical, food, or other hygiene-critical environments.
The Safety Answer: Application and Installation, Not System Type
The reason neither passive nor active isolation is categorically safer is that safety in an explosion protection system is not a property of the device type. It is a function of correct application, correct installation, and operation within certified parameters.
That point becomes concrete when you look at where isolation failures actually occur. The issues are almost never with the technology itself. They trace back to three patterns:

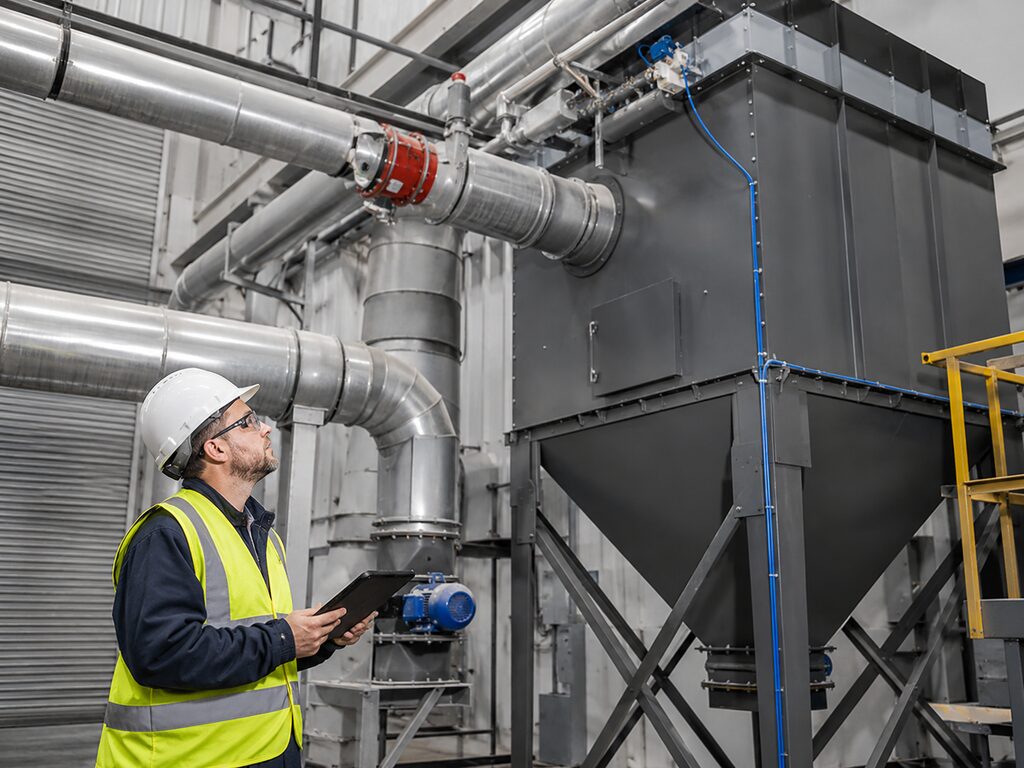

- Backdraft dampers must be installed within the minimum and maximum distance limits established during certification testing. Too close, and the flap may not have enough time to close before the deflagration front arrives. Too far, and pressure piling in the ductwork can cause structural failure of the duct or the valve itself.
- KST and Pmax values for the process dust must fall within the tested and certified range for the isolation device. A flap installed on a system with a higher KST than it was tested for may fail to arrest the event, regardless of how well it was physically installed.
- Certification must be third-party verified. Decades ago, uncertified backdraft dampers were placed on systems based on assumption rather than testing. A significant percentage of historical isolation failures trace back to devices that were never properly certified or were applied outside their tested parameters.
Facilities built or retrofitted 20 to 30 years ago often have dampers that were placed based on general practice rather than certification testing. A backdraft damper that was never certified, or one installed outside its tested distance range, is not providing the protection that appears on paper.
This is why isolation selection is an engineering decision, not a product decision. The right system, installed correctly within its certification limits, is a safe system. A technically capable device installed incorrectly provides no reliable protection.
Misconceptions That Create Compliance Gaps
“We have venting, so we’re covered.”
Explosion venting and explosion isolation address different propagation risks and are not interchangeable. Venting is applied to the vessel volume, managing the pressure generated inside the equipment during a deflagration. Isolation is applied to the interconnecting ductwork, preventing the event from propagating to connected equipment. Both are required for a fully compliant protection concept. Venting without isolation leaves the duct connections unprotected. Isolation without appropriate vessel-level protection leaves the vessel itself exposed.
“Any backdraft damper will do the job.”
Not all backdraft dampers are equivalent, and an untested or uncertified device provides no reliable protection. All isolation devices, passive and active, require third-party certification. The certification parameters, including tested distance range, KST, and Pmax limits, define the conditions under which the device has been demonstrated to work. Outside those parameters, performance is unknown.
Specifying or retrofitting any passive damper without confirming it meets current certification requirements and is installed within those limits is a compliance gap, regardless of how long the original device has been in place.
Five Questions to Work Through Before Specifying Isolation
Before selecting an isolation system, engineers and EHS teams should work through these questions. The answers determine whether passive isolation is viable, which active option is appropriate, and whether current installations require reevaluation.
- Where is the explosion risk coming from? Is isolation needed at a single vessel with one duct connection, or are there interconnected vessels where an event could propagate in multiple directions? Bidirectional risk immediately changes the specification path.
- What is the dust loading? Light, fugitive dust in a collection system behaves differently than dense product moving through a pneumatic conveying line. High loading increases clogging risk for passive flaps and shifts the decision toward active valves.
- What type of dust is being handled? Organic dust, metal dust, and hygroscopic or sanitary materials each carry different certification requirements and product-compatibility constraints. Hygienic or pharmaceutical processes typically eliminate passive damper options outright.
- What is the line size? Standard pneumatic conveying lines (3 to 8 inches) are well-served by active pinch valves. Mid-range sizes may accommodate passive isolation. Very large lines (50 inches and above) are often out of passive solution limits
- Is the connected vessel properly explosion-protected? Isolation protects the interconnection between equipment, but if the vessel itself lacks compliant explosion protection (venting, suppression, or containment), the isolation system cannot make the overall arrangement safe. Vessel protection must be confirmed in parallel with isolation.
These questions do not always yield a single clear answer on first pass. Some processes require a performance-based engineering evaluation rather than a direct prescriptive path. But working through them systematically is the starting point for any isolation specification.
How REMBE Approaches Isolation Selection
REMBE provides engineered isolation solutions across all three system types, and the selection process is consultative rather than prescriptive. The goal is to match the system to the process, not to recommend the most technically complex option available.
Passive Isolation: Q-Flap NX and NXII
The Q-Flap NX and NXII are REMBE’s certified passive isolation valves. Key application details:
- Can be used for both organic and metal dust applications
- Available in carbon steel, 304 stainless, 316 stainless, and 310 stainless (abrasion-resistant for high-wear processes)
- Q-Flap NX: horizontal installation only, up to two elbows between the protected vessel and the valve
- Q-Flap NXII: vertical and horizontal installation, counterflow-capable for clean-side ductwork, up to three elbows
The NXII is the appropriate selection for counterflow installations or applications where vertical mounting or additional elbows between the vessel and valve are required.
Active Isolation: Quench Valve QVII and QVIII
The Quench Valves QVII and QVIII are REMBE’s high-speed active isolation valves for sensor-triggered explosion isolation:
- Available in sizes from 3 inches through 40 inches, but most commonly applied sizes 3 – 8 inches
- Food-grade sleeve or anti-abrasive sleeve options to match process requirements
- Designed for direct reset from the controller without requiring manual access, which minimizes downtime after activation or false trip
The extended size range through 40 inches makes the Quench Valve a viable option in larger pneumatic conveying configurations where most active valve alternatives are not rated.
Active Isolation: REDEX® Slide
The REDEX® Slide is REMBE’s fast-acting knife gate valve, purpose-built for isolating pressure-relieved systems handling abrasive material:
- Available in nominal pipe sizes from DN 50 to DN 150 (approximately 2 to 6 inches)
- Gas-generator actuation closes the slide within milliseconds of a detected pressure rise or infrared signal
- Installs vertically, horizontally, or at any angle without creating a pressure drop in the line
- Rated for high dust loads and flow velocities exceeding 25 m/s, suited to demanding CIP, dust, or gas applications
Because the REDEX® Slide creates no pressure drop in the line and can be installed at any angle, it is a practical active isolation option for silos, mills, and extraction systems where abrasive dust would compromise other valve types.
Chemical Isolation: Q-Bic System
The Q-Bic is REMBE’s chemical isolation system, designed for applications where passive and conventional active isolation are not suitable:
- Suitable for sanitary, hygienic, and food-grade applications where passive damper geometry creates contamination risk
- Appropriate for large-diameter ducts where active pinch valve sizing becomes impractical
- Newer addition to the REMBE product line; product specifications continue to develop so contact REMBE for current configurations
Performance-Based Solutions
Not every installation follows a straight prescriptive compliance path. In some cases, facilities that would otherwise require an active system can achieve a compliant passive solution through a performance-based engineering approach. This route typically involves detailed engineering evaluation, documentation, and potentially application-specific testing. REMBE’s engineering team works through these cases where facility requirements make minimizing electronic control systems a priority.
Getting Isolation Right Is an Engineering Decision
The question of passive versus active explosion isolation does not have a universal answer, and that is the point. A correctly specified passive system installed within its certification limits is as safe as any active alternative. An incorrectly applied or uncertified system, regardless of type, is not providing the protection it appears to on paper.
Retrofits are common. Facilities often discover they have passive isolation in place where the explosion risk runs in two directions or dampers that predate current certification standards. Those situations require a fresh look at the engineering, not an assumption that what was installed years ago still meets current requirements.
If you have questions about your current isolation configuration or are evaluating options for a new installation, REMBE’s engineering team works through the application questions with you, reviews the certification parameters for your process conditions, and recommends the solution that fits the system. Contact REMBE to schedule an engineering consultation or system sizing review.
