TARGO VENT
In the event of a deflagration outside a building, explosion vents open releasing the explosion flame and pressure wave into the environment. Adequate safety areas are crucial. These areas must be kept free of buildings and be out of bounds to both vehicles and pedestrians. These empty areas cannot be used commercially but still incur operating costs. TARGO-VENT limits the opening angle of an explosion vent in order to protect people, vehicles or structures.
to reduce the
size of dangerous
areas.

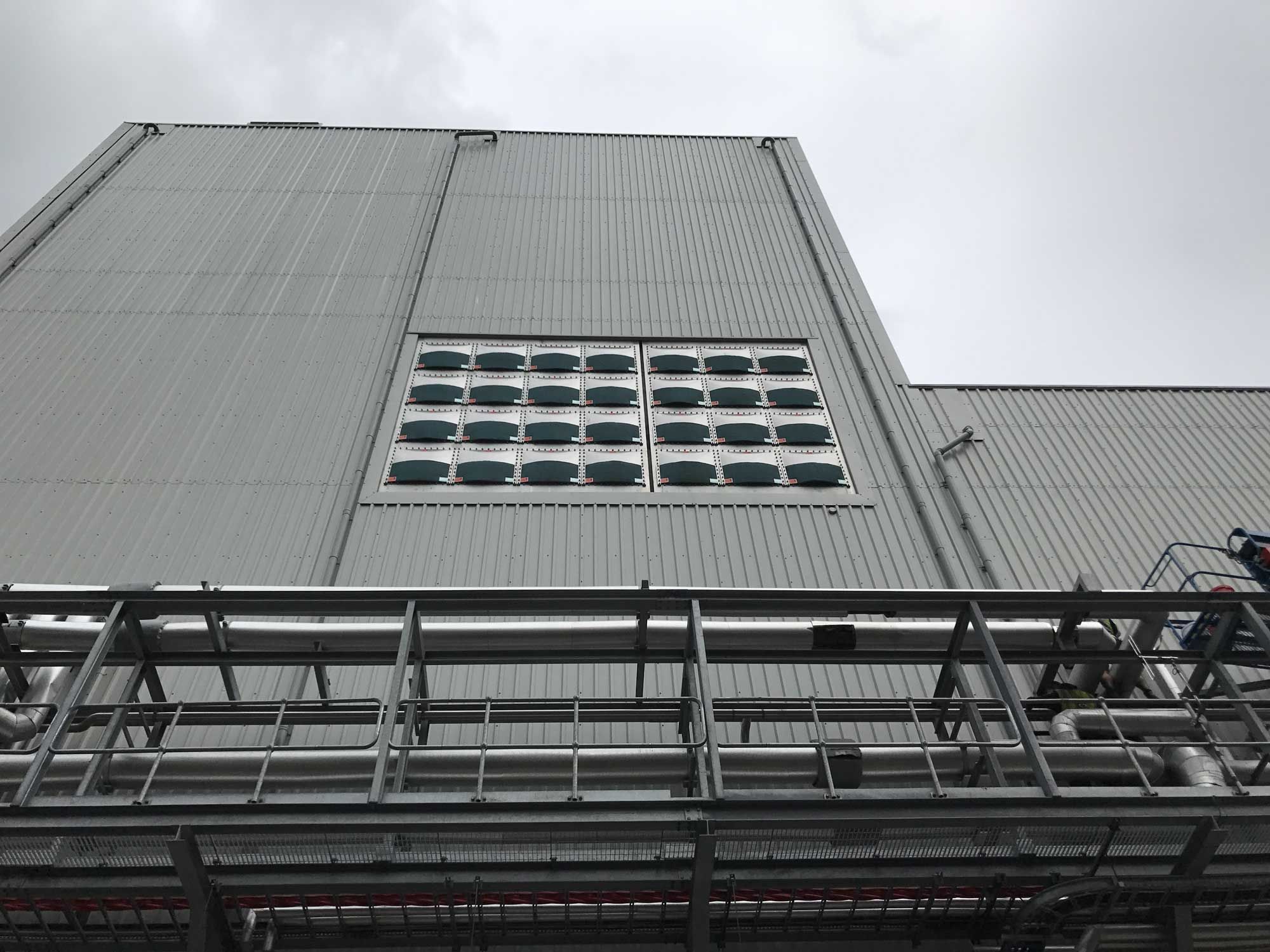

Application
TARGO-VENT is ideal for rectangular explosion vents, venting into areas used by vehicles or pedestrians, used in outdoor applications, venting into previously clear areas, which have subsequently been built upon.
Mechanism
TARGO-VENT limits the opening angle of the explosion vent and guides the explosion pressure wave, flames and heat into defined areas. This minimizes the size of the safety areas required.
rupture disc
for little to no overpressure or vacuum.

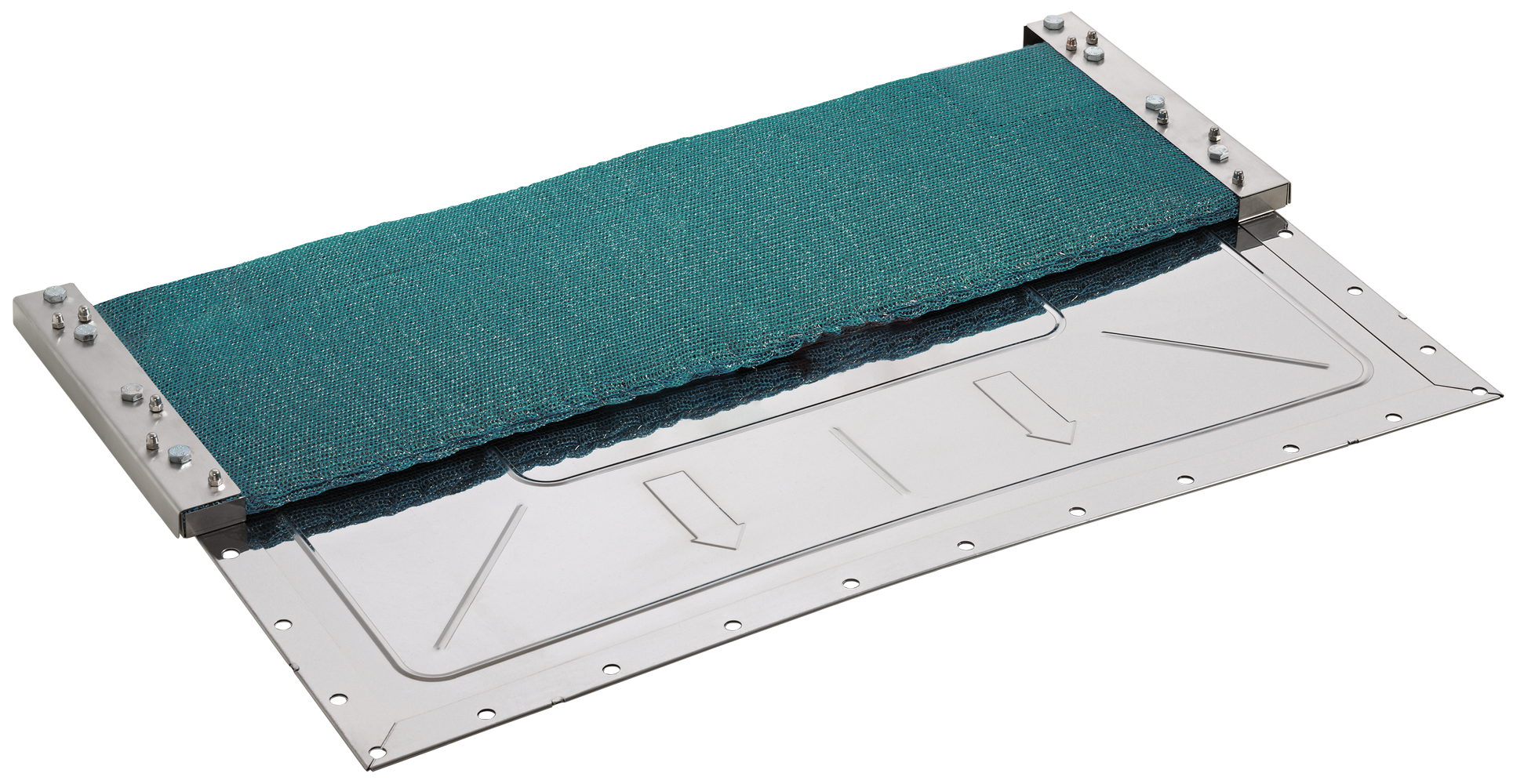

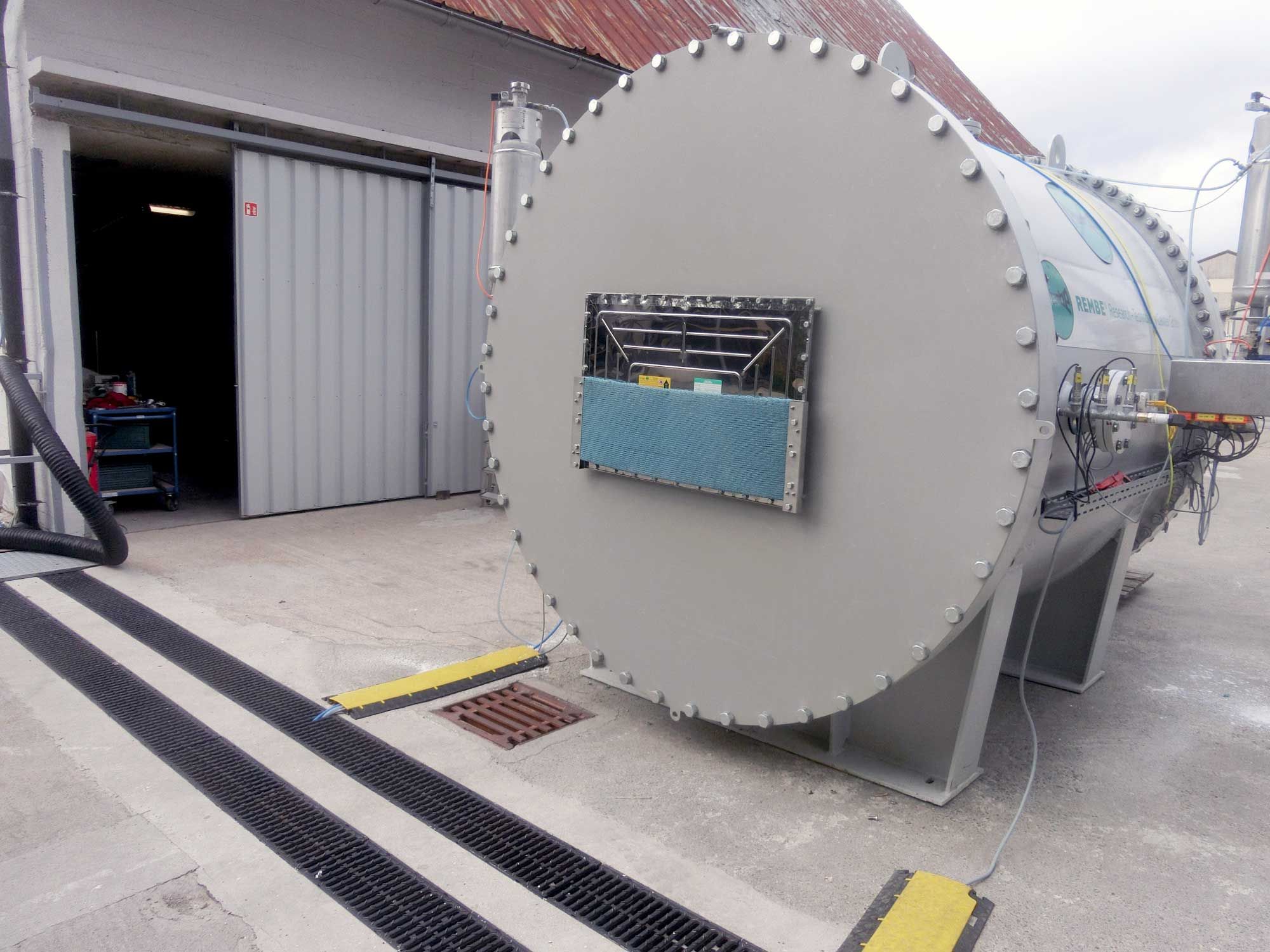

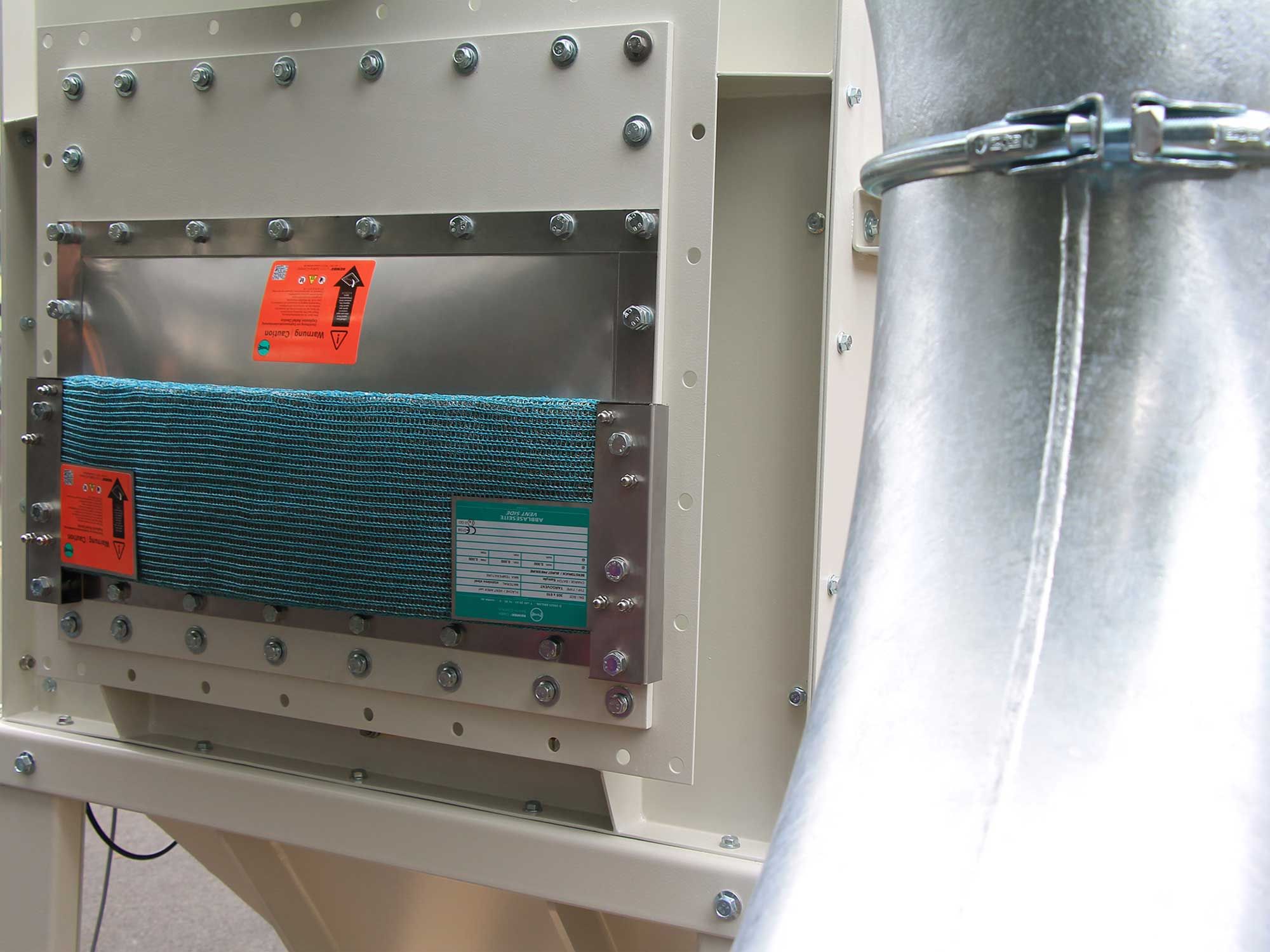

opening angle limiter
Add-on module to reduce hazardous areas.
- Smaller safety areas required in front of vent openings – more productive use of valuable operating areas.
- Smaller area required for explosion venting than with alternative deflectors.
- Low cost protection of infrastructure.
- Safes traffic routes for people and vehicles while simultaneously reducing the safety area required.
- Retrofitting with TARGO-VENT provides greater safety for existing installations.
- Maintenance-free and long service life through the use of stainless corrosion-resistant steel.
Product parameters
Valid for explosion vents with a venting area of ≤ 0.54 m²
| Max. KSt-Wert | ≤ 200 bar × m/s |
| Max. red. explosion pressure Pred | ≤ 1,0 bar at 22 °C |
| Pred | 0,2 bar | 0,4 bar | 0,6 bar | 0,8 bar | 1,0 bar |
| Deflection angle | 45° | 40° | 35° | 30° | 25° |
| Venting efficiency | 55% | 58,8% | 63% | 66,3% | 70% |
Valid for explosion vents with a venting area of between 0.54 m² and 1.1 m²
| Max. KSt-Wert | ≤ 200 bar × m/s |
| Max. red. explosion pressure Pred | ≤ 0,4 bar at 22 °C |
| Pred | 0,2 bar | 0,3 bar | 0,4 bar |
| Deflection angle | 45° | 42,5° | 40° |
| Venting efficiency | 55% | 57,5% | 60% |
Note: Linear relationship between max. red. explosion pressure Pred, deflection angle and efficiency.
Dimensions and weight
| Measurements, mm | Approx. weight, kg |
|---|---|
| 305 x 610 | 3 |
| 620 x 820 | 9 |
| 586 x 920 | 9 |
| 610 x 1118 | 10 |
| 920 x 920 | 14 |
| 915 x 1118 | 15 |
Other sizes available on request.
- animal feed productions
- aspiration plants
- brewery
- destoners
- filters
- food
- food production
- hydrogen
- mills and grinding plants
- mixers
- recycling
- screens
- silo
- spray dryers
- wood processing
ATEX EC type examination certificate no.
FSA 13 ATEX 1637
By decreasing the size of dangerous areas, TARGO-VENT helps you to reduce your safety areas to a minimum and increase usable operating space while providing optimum protection against explosions
